Page 45 - Fluid Fitting 2018_extended

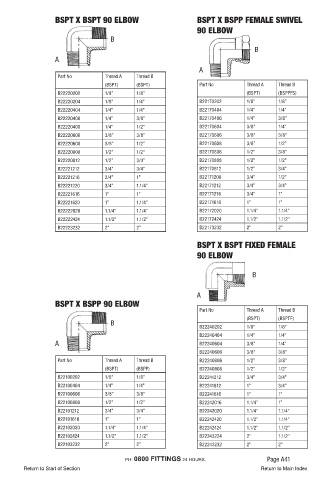

BSPT X BSPT 90 ELBOW BSPT X BSPP FEMALE SWIVEL
90 ELBOW
B

B
A
A
Part No Thread A Thread B
(BSPT) (BSPT) Part No Thread A Thread B
B22220202 1/8” 1/8” (BSPT) (BSPPFS)
B22220204 1/8” 1/4” B22170202 1/8” 1/8”
B22220404 1/4” 1/4” B22170404 1/4” 1/4”
B22220406 1/4” 3/8” B22170406 1/4” 3/8”
B22220408 1/4” 1/2” B22170604 3/8” 1/4”
B22220606 3/8” 3/8” B22170606 3/8” 3/8”
B22220608 3/8” 1/2” B22170608 3/8” 1/2”
B22220808 1/2” 1/2” B22170806 1/2” 3/8”
B22220812 1/2” 3/4” B22170808 1/2” 1/2”
B22221212 3/4” 3/4” B22170812 1/2” 3/4”
B22221216 3/4” 1” B22171208 3/4” 1/2”
B22221220 3/4” 1.1/4” B22171212 3/4” 3/4”
B22221616 1” 1” B22171216 3/4” 1”
B22221620 1” 1.1/4” B22171616 1” 1”
B22222020 1.1/4” 1.1/4” B22172020 1.1/4” 1.1/4”
B22222424 1.1/2” 1.1/2” B22172424 1.1/2” 1.1/2”
B22223232 2” 2” B22173232 2” 2”

BSPT X BSPT FIXED FEMALE
90 ELBOW

B

A
BSPT X BSPP 90 ELBOW
Part No Thread A Thread B
(BSPT) (BSPTF)
B
B22240202 1/8” 1/8”
B22240404 1/4” 1/4”
A B22240604 3/8” 1/4”

B22240606 3/8” 3/8”
Part No Thread A Thread B B22240806 1/2” 3/8”
(BSPT) (BSPP) B22240808 1/2” 1/2”
B22100202 1/8” 1/8” B22241212 3/4” 3/4”
B22100404 1/4” 1/4” B22241612 1” 3/4”
B22100606 3/8” 3/8” B22241616 1” 1”
B22100808 1/2” 1/2” B22242016 1.1/4” 1”
B22101212 3/4” 3/4” B22242020 1.1/4” 1.1/4”
B22101616 1” 1” B22242420 1.1/2” 1.1/4”
B22102020 1.1/4” 1.1/4” B22242424 1.1/2” 1.1/2”
B22102424 1.1/2” 1.1/2” B22243224 2” 1.1/2”
B22103232 2” 2” B22243232 2” 2”
