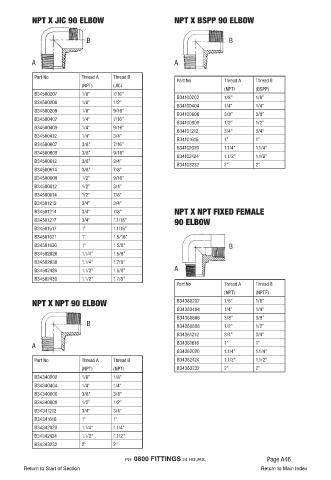

Page 50 - Fluid Fitting 2018_extended

NPT X JIC 90 ELBOW NPT X BSPP 90 ELBOW

B B

A A

Part No Thread A Thread B
Part No Thread A Thread B
(NPT) (JIC)
(NPT) (BSPP)
B34500207 1/8” 7/16”
B34100202 1/8” 1/8”
B34500208 1/8” 1/2”
B34100404 1/4” 1/4”
B34500209 1/8” 9/16”
B34100606 3/8” 3/8”
B34500407 1/4” 7/16”
B34100808 1/2” 1/2”
B34500409 1/4” 9/16”
B34101212 3/4” 3/4”
B34500412 1/4” 3/4”
B34101616 1” 1”
B34500607 3/8” 7/16”
B34102020 1.1/4” 1.1/4”
B34500609 3/8” 9/16”
B34102424 1.1/2” 1.1/2”
B34500612 3/8” 3/4”
B34103232 2” 2”
B34500614 3/8” 7/8”
B34500809 1/2” 9/16”
B34500812 1/2” 3/4”
B34500814 1/2” 7/8”
B34501212 3/4” 3/4”
B34501214 3/4” 7/8” NPT X NPT FIXED FEMALE
B34501217 3/4” 1.1/16” 90 ELBOW
B34501617 1” 1.1/16”
B34501621 1” 1.5/16”
B34501626 1” 1.5/8” B
B34502026 1.1/4” 1.5/8”
B34502030 1.1/4” 1.7/8”
B34502426 1.1/2” 1.5/8” A
B34502430 1.1/2” 1.7/8”
Part No Thread A Thread B
(NPT) (NPTF)
NPT X NPT 90 ELBOW B34360202 1/8” 1/8”
B34360404 1/4” 1/4”
B34360606 3/8” 3/8”
B B34360808 1/2” 1/2”

B34361212 3/4” 3/4”
A B34361616 1” 1”
B34362020 1.1/4” 1.1/4”
Part No Thread A Thread B B34362424 1.1/2” 1.1/2”
(NPT) (NPT) B34363232 2” 2”
B34340202 1/8” 1/8”
B34340404 1/4” 1/4”
B34340606 3/8” 3/8”
B34340808 1/2” 1/2”
B34341212 3/4” 3/4”
B34341616 1” 1”
B34342020 1.1/4” 1.1/4”
B34342424 1.1/2” 1.1/2”
B34343232 2” 2”
