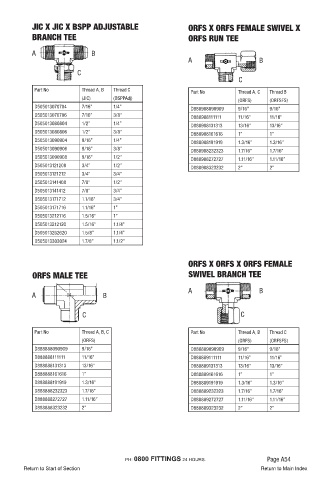

JIC X JIC X BSPP ADJUSTABLE ORFS X ORFS FEMALE SWIVEL X

BRANCH TEE ORFS RUN TEE

A B
A B

C
C

Part No Thread A, B Thread C Part No Thread A, C Thread B
(JIC) (BSPPAdj) (ORFS) (ORFSFS)
D505013070704 7/16” 1/4” D888988090909 9/16” 9/16”
D505013070706 7/16” 3/8” D888988111111 11/16” 11/16”
D505013080804 1/2” 1/4” D888988131313 13/16” 13/16”
D505013080806 1/2” 3/8” D888988161616 1” 1”
D505013090904 9/16” 1/4” D888988191919 1.3/16” 1.3/16”
D505013090906 9/16” 3/8” D888988232323 1.7/16” 1.7/16”
D505013090908 9/16” 1/2” D888988272727 1.11/16” 1.11/16”
D505013121208 3/4” 1/2” D888988323232 2” 2”
D505013121212 3/4” 3/4”
D505013141408 7/8” 1/2”
D505013141412 7/8” 3/4”
D505013171712 1.1/16” 3/4”
D505013171716 1.1/16” 1”
D505013212116 1.5/16” 1”
D505013212120 1.5/16” 1.1/4”
D505013262620 1.5/8” 1.1/4”
D505013303024 1.7/8” 1.1/2”

ORFS X ORFS X ORFS FEMALE

ORFS MALE TEE SWIVEL BRANCH TEE

A B
A B

C C

Part No Thread A, B, C Part No Thread A, B Thread C
(ORFS) (ORFS) (ORFSFS)
D888888090909 9/16” D888889090909 9/16” 9/16”
D888888111111 11/16” D888889111111 11/16” 11/16”
D888888131313 13/16” D888889131313 13/16” 13/16”
D888888161616 1” D888889161616 1” 1”
D888888191919 1.3/16” D888889191919 1.3/16” 1.3/16”
D888888232323 1.7/16” D888889232323 1.7/16” 1.7/16”
D888888272727 1.11/16” D888889272727 1.11/16” 1.11/16”
D888888323232 2” D888889323232 2” 2”

PH: 0800 FITTINGS 24 HOURS. Page A54
