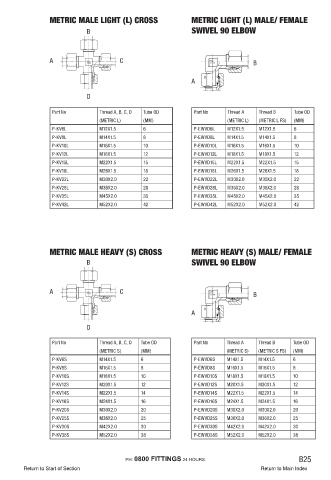

METRIC MALE LIGHT (L) CROSS METRIC LIGHT (L) MALE/ FEMALE

B SWIVEL 90 ELBOW

A C B

A

D

Part No Thread A, B, C, D Tube OD Part No Thread A Thread B Tube OD
(METRIC L) (MM) (METRIC L) (METRIC L FS) (MM)
P-KV6L M12X1.5 6 P-EWVD6L M12X1.5 M12X1.5 6
P-KV8L M14X1.5 8 P-EWVD8L M14X1.5 M14X1.5 8
P-KV10L M16X1.5 10 P-EWVD10L M16X1.5 M16X1.5 10
P-KV12L M18X1.5 12 P-EWVD12L M18X1.5 M18X1.5 12
P-KV15L M22X1.5 15 P-EWVD15L M22X1.5 M22X1.5 15
P-KV18L M26X1.5 18 P-EWVD18L M26X1.5 M26X1.5 18
P-KV22L M30X2.0 22 P-EWVD22L M30X2.0 M30X2.0 22
P-KV28L M36X2.0 28 P-EWVD28L M36X2.0 M36X2.0 28
P-KV35L M45X2.0 35 P-EWVD35L M45X2.0 M45X2.0 35
P-KV42L M52X2.0 42 P-EWVD42L M52X2.0 M52X2.0 42

METRIC MALE HEAVY (S) CROSS METRIC HEAVY (S) MALE/ FEMALE
B SWIVEL 90 ELBOW

A C
B

A

D

Part No Thread A, B, C, D Tube OD Part No Thread A Thread B Tube OD
(METRIC S) (MM) (METRIC S) (METRIC S FS) (MM)
P-KV6S M14X1.5 6 P-EWVD6S M14X1.5 M14X1.5 6
P-KV8S M16X1.5 8 P-EWVD8S M16X1.5 M16X1.5 8
P-KV10S M18X1.5 10 P-EWVD10S M18X1.5 M18X1.5 10
P-KV12S M20X1.5 12 P-EWVD12S M20X1.5 M20X1.5 12
P-KV14S M22X1.5 14 P-EWVD14S M22X1.5 M22X1.5 14
P-KV16S M24X1.5 16 P-EWVD16S M24X1.5 M24X1.5 16
P-KV20S M30X2.0 20 P-EWVD20S M30X2.0 M30X2.0 20
P-KV25S M36X2.0 25 P-EWVD25S M36X2.0 M36X2.0 25
P-KV30S M42X2.0 30 P-EWVD30S M42X2.0 M42X2.0 30
P-KV38S M52X2.0 38 P-EWVD38S M52X2.0 M52X2.0 38

PH: 0800 FITTINGS 24 HOURS. B25
