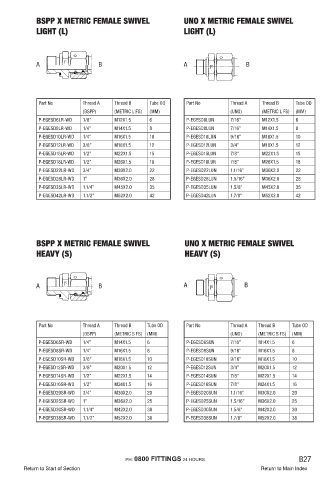

Page 93 - Fluid Fitting 2018_extended

BSPP X METRIC FEMALE SWIVEL UNO X METRIC FEMALE SWIVEL
LIGHT (L) LIGHT (L)

A B A B

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(BSPP) (METRIC L FS) (MM) (UNO) (METRIC L FS) (MM)
P-EGESD6LR-WD 1/8” M12X1.5 6 P-EGESD6LUN 7/16” M12X1.5 6
P-EGESD8LR-WD 1/4” M14X1.5 8 P-EGESD8LUN 7/16” M14X1.5 8
P-EGESD10LR-WD 1/4” M16X1.5 10 P-EGESD10LUN 9/16” M16X1.5 10
P-EGESD12LR-WD 3/8” M18X1.5 12 P-EGESD12LUN 3/4” M18X1.5 12
P-EGESD15LR-WD 1/2” M22X1.5 15 P-EGESD15LUN 7/8” M22X1.5 15
P-EGESD18LR-WD 1/2” M26X1.5 18 P-EGESD18LUN 7/8” M26X1.5 18
P-EGESD22LR-WD 3/4” M30X2.0 22 P-EGESD22LUN 1.1/16” M30X2.0 22
P-EGESD28LR-WD 1” M36X2.0 28 P-EGESD28LUN 1.5/16” M36X2.0 28
P-EGESD35LR-WD 1.1/4” M45X2.0 35 P-EGESD35LUN 1.5/8” M45X2.0 35
P-EGESD42LR-WD 1.1/2” M52X2.0 42 P-EGESD42LUN 1.7/8” M52X2.0 42

BSPP X METRIC FEMALE SWIVEL UNO X METRIC FEMALE SWIVEL
HEAVY (S) HEAVY (S)

A B A B

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(BSPP) (METRIC S FS) (MM) (UNO) (METRIC S FS) (MM)
P-EGESD6SR-WD 1/4” M14X1.5 6 P-EGESD6SUN 7/16” M14X1.5 6
P-EGESD8SR-WD 1/4” M16X1.5 8 P-EGESD8SUN 9/16” M16X1.5 8
P-EGESD10SR-WD 3/8” M18X1.5 10 P-EGESD10SUN 9/16” M18X1.5 10
P-EGESD12SR-WD 3/8” M20X1.5 12 P-EGESD12SUN 3/4” M20X1.5 12
P-EGESD14SR-WD 1/2” M22X1.5 14 P-EGESD14SUN 7/8” M22X1.5 14
P-EGESD16SR-WD 1/2” M24X1.5 16 P-EGESD16SUN 7/8” M24X1.5 16
P-EGESD20SR-WD 3/4” M30X2.0 20 P-EGESD20SUN 1.1/16” M30X2.0 20
P-EGESD25SR-WD 1” M36X2.0 25 P-EGESD25SUN 1.5/16” M36X2.0 25
P-EGESD30SR-WD 1.1/4” M42X2.0 30 P-EGESD30SUN 1.5/8” M42X2.0 30
P-EGESD38SR-WD 1.1/2” M52X2.0 38 P-EGESD38SUN 1.7/8” M52X2.0 38

PH: 0800 FITTINGS 24 HOURS. B27
