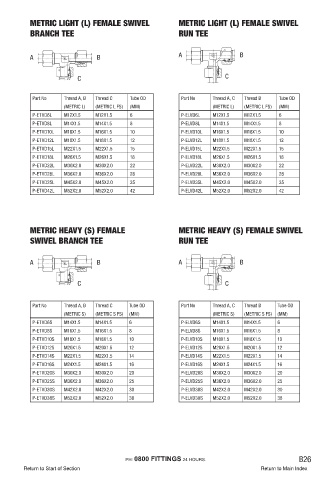

Page 92 - Fluid Fitting 2018_extended

METRIC LIGHT (L) FEMALE SWIVEL METRIC LIGHT (L) FEMALE SWIVEL

BRANCH TEE RUN TEE

A B A B

C C

Part No Thread A, B Thread C Tube OD Part No Thread A, C Thread B Tube OD
(METRIC L) (METRIC L FS) (MM) (METRIC L) (METRIC L FS) (MM)
P-ETVD6L M12X1.5 M12X1.5 6 P-ELVD6L M12X1.5 M12X1.5 6
P-ETVD8L M14X1.5 M14X1.5 8 P-ELVD8L M14X1.5 M14X1.5 8
P-ETVD10L M16X1.5 M16X1.5 10 P-ELVD10L M16X1.5 M16X1.5 10
P-ETVD12L M18X1.5 M18X1.5 12 P-ELVD12L M18X1.5 M18X1.5 12
P-ETVD15L M22X1.5 M22X1.5 15 P-ELVD15L M22X1.5 M22X1.5 15
P-ETVD18L M26X1.5 M26X1.5 18 P-ELVD18L M26X1.5 M26X1.5 18
P-ETVD22L M30X2.0 M30X2.0 22 P-ELVD22L M30X2.0 M30X2.0 22
P-ETVD28L M36X2.0 M36X2.0 28 P-ELVD28L M36X2.0 M36X2.0 28
P-ETVD35L M45X2.0 M45X2.0 35 P-ELVD35L M45X2.0 M45X2.0 35
P-ETVD42L M52X2.0 M52X2.0 42 P-ELVD42L M52X2.0 M52X2.0 42

METRIC HEAVY (S) FEMALE METRIC HEAVY (S) FEMALE SWIVEL
SWIVEL BRANCH TEE RUN TEE

A B A B

C C

Part No Thread A, B Thread C Tube OD Part No Thread A, C Thread B Tube OD
(METRIC S) (METRIC S FS) (MM) (METRIC S) (METRIC S FS) (MM)
P-ETVD6S M14X1.5 M14X1.5 6 P-ELVD6S M14X1.5 M14X1.5 6
P-ETVD8S M16X1.5 M16X1.5 8 P-ELVD8S M16X1.5 M16X1.5 8
P-ETVD10S M18X1.5 M18X1.5 10 P-ELVD10S M18X1.5 M18X1.5 10
P-ETVD12S M20X1.5 M20X1.5 12 P-ELVD12S M20X1.5 M20X1.5 12
P-ETVD14S M22X1.5 M22X1.5 14 P-ELVD14S M22X1.5 M22X1.5 14
P-ETVD16S M24X1.5 M24X1.5 16 P-ELVD16S M24X1.5 M24X1.5 16
P-ETVD20S M30X2.0 M30X2.0 20 P-ELVD20S M30X2.0 M30X2.0 20
P-ETVD25S M36X2.0 M36X2.0 25 P-ELVD25S M36X2.0 M36X2.0 25
P-ETVD30S M42X2.0 M42X2.0 30 P-ELVD30S M42X2.0 M42X2.0 30
P-ETVD38S M52X2.0 M52X2.0 38 P-ELVD38S M52X2.0 M52X2.0 38
