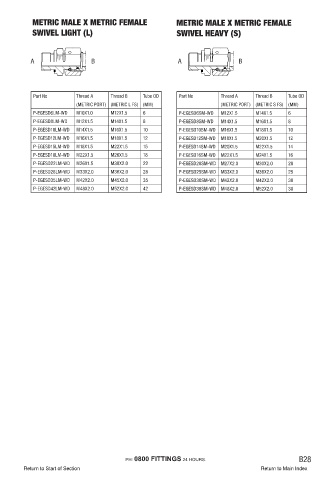

METRIC MALE X METRIC FEMALE METRIC MALE X METRIC FEMALE

SWIVEL LIGHT (L) SWIVEL HEAVY (S)

A B A B

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(METRIC PORT) (METRIC L FS) (MM) (METRIC PORT) (METRIC S FS) (MM)
P-EGESD6LM-WD M10X1.0 M12X1.5 6 P-EGESD6SM-WD M12X1.5 M14X1.5 6
P-EGESD8LM-WD M12X1.5 M14X1.5 8 P-EGESD8SM-WD M14X1.5 M16X1.5 8
P-EGESD10LM-WD M14X1.5 M16X1.5 10 P-EGESD10SM-WD M16X1.5 M18X1.5 10
P-EGESD12LM-WD M16X1.5 M18X1.5 12 P-EGESD12SM-WD M18X1.5 M20X1.5 12
P-EGESD15LM-WD M18X1.5 M22X1.5 15 P-EGESD14SM-WD M20X1.5 M22X1.5 14
P-EGESD18LM-WD M22X1.5 M26X1.5 18 P-EGESD16SM-WD M22X1.5 M24X1.5 16
P-EGESD22LM-WD M26X1.5 M30X2.0 22 P-EGESD20SM-WD M27X2.0 M30X2.0 20
P-EGESD28LM-WD M33X2.0 M36X2.0 28 P-EGESD25SM-WD M33X2.0 M36X2.0 25
P-EGESD35LM-WD M42X2.0 M45X2.0 35 P-EGESD30SM-WD M42X2.0 M42X2.0 30
P-EGESD42LM-WD M48X2.0 M52X2.0 42 P-EGESD38SM-WD M48X2.0 M52X2.0 38

PH: 0800 FITTINGS 24 HOURS. B28
