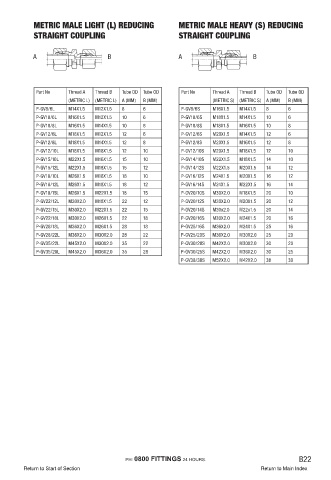

Page 88 - Fluid Fitting 2018_extended

METRIC MALE LIGHT (L) REDUCING METRIC MALE HEAVY (S) REDUCING
STRAIGHT COUPLING STRAIGHT COUPLING

A B A B

Part No Thread A Thread B Tube OD Tube OD Part No Thread A Thread B Tube OD Tube OD
(METRIC L) (METRIC L) A (MM) B (MM) (METRIC S) (METRIC S) A (MM) B (MM)
P-GV8/6L M14X1.5 M12X1.5 8 6 P-GV8/6S M16X1.5 M14X1.5 8 6
P-GV10/6L M16X1.5 M12X1.5 10 6 P-GV10/6S M18X1.5 M14X1.5 10 6
P-GV10/8L M16X1.5 M14X1.5 10 8 P-GV10/8S M18X1.5 M16X1.5 10 8
P-GV12/6L M18X1.5 M12X1.5 12 6 P-GV12/6S M20X1.5 M14X1.5 12 6
P-GV12/8L M18X1.5 M14X1.5 12 8 P-GV12/8S M20X1.5 M16X1.5 12 8
P-GV12/10L M18X1.5 M16X1.5 12 10 P-GV12/10S M20X1.5 M18X1.5 12 10
P-GV15/10L M22X1.5 M16X1.5 15 10 P-GV14/10S M22X1.5 M18X1.5 14 10
P-GV15/12L M22X1.5 M18X1.5 15 12 P-GV14/12S M22X1.5 M20X1.5 14 12
P-GV18/10L M26X1.5 M16X1.5 18 10 P-GV16/12S M24X1.5 M20X1.5 16 12
P-GV18/12L M26X1.5 M18X1.5 18 12 P-GV16/14S M24X1.5 M22X1.5 16 14
P-GV18/15L M26X1.5 M22X1.5 18 15 P-GV20/10S M30X2.0 M18X1.5 20 10
P-GV22/12L M30X2.0 M18X1.5 22 12 P-GV20/12S M30X2.0 M20X1.5 20 12
P-GV22/15L M30X2.0 M22X1.5 22 15 P-GV20/14S M30x2.0 M22x1.5 20 14
P-GV22/18L M30X2.0 M26X1.5 22 18 P-GV20/16S M30X2.0 M24X1.5 20 16
P-GV28/18L M36X2.0 M26X1.5 28 18 P-GV25/16S M36X2.0 M24X1.5 25 16
P-GV28/22L M36X2.0 M30X2.0 28 22 P-GV25/20S M36X2.0 M30X2.0 25 20
P-GV35/22L M45X2.0 M30X2.0 35 22 P-GV30/20S M42X2.0 M30X2.0 30 20
P-GV35/28L M45X2.0 M36X2.0 35 28 P-GV30/25S M42X2.0 M36X2.0 30 25
P-GV38/30S M52X2.0 M42X2.0 38 30
