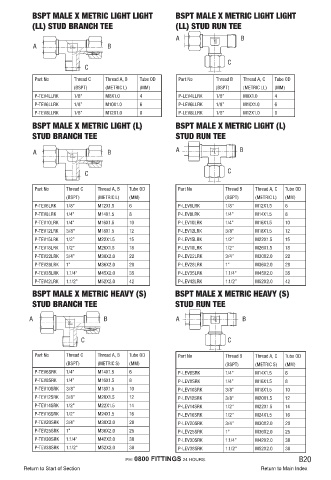

Page 86 - Fluid Fitting 2018_extended

BSPT MALE X METRIC LIGHT LIGHT BSPT MALE X METRIC LIGHT LIGHT
(LL) STUD BRANCH TEE (LL) STUD RUN TEE

A B
A B

C
C

Part No Thread C Thread A, B Tube OD Part No Thread B Thread A, C Tube OD
(BSPT) (METRIC L) (MM) (BSPT) (METRIC LL) (MM)
P-TEV4LLRK 1/8” M8X1.0 4 P-LEV4LLRK 1/8” M8X1.0 4
P-TEV6LLRK 1/8” M10X1.0 6 P-LEV6LLRK 1/8” M10X1.0 6
P-TEV8LLRK 1/8” M12X1.0 8 P-LEV8LLRK 1/8” M12X1.0 8

BSPT MALE X METRIC LIGHT (L) BSPT MALE X METRIC LIGHT (L)
STUD BRANCH TEE STUD RUN TEE

A B A B

C C

Part No Thread C Thread A, B Tube OD Part No Thread B Thread A, C Tube OD
(BSPT) (METRIC L) (MM) (BSPT) (METRIC L) (MM)
P-TEV6LRK 1/8” M12X1.5 6 P-LEV6LRK 1/8” M12X1.5 6
P-TEV8LRK 1/4” M14X1.5 8 P-LEV8LRK 1/4” M14X1.5 8
P-TEV10LRK 1/4” M16X1.5 10 P-LEV10LRK 1/4” M16X1.5 10
P-TEV12LRK 3/8” M18X1.5 12 P-LEV12LRK 3/8” M18X1.5 12
P-TEV15LRK 1/2” M22X1.5 15 P-LEV15LRK 1/2” M22X1.5 15
P-TEV18LRK 1/2” M26X1.5 18 P-LEV18LRK 1/2” M26X1.5 18
P-TEV22LRK 3/4” M30X2.0 22 P-LEV22LRK 3/4” M30X2.0 22
P-TEV28LRK 1” M36X2.0 28 P-LEV28LRK 1” M36X2.0 28
P-TEV35LRK 1.1/4” M45X2.0 35 P-LEV35LRK 1.1/4” M45X2.0 35
P-TEV42LRK 1.1/2” M52X2.0 42 P-LEV42LRK 1.1/2” M52X2.0 42
BSPT MALE X METRIC HEAVY (S) BSPT MALE X METRIC HEAVY (S)

STUD BRANCH TEE STUD RUN TEE

A B A B

C C

Part No Thread C Thread A, B Tube OD Part No Thread B Thread A, C Tube OD
(BSPT) (METRIC S) (MM) (BSPT) (METRIC S) (MM)
P-TEV6SRK 1/4” M14X1.5 6 P-LEV6SRK 1/4” M14X1.5 6
P-TEV8SRK 1/4” M16X1.5 8 P-LEV8SRK 1/4” M16X1.5 8
P-TEV10SRK 3/8” M18X1.5 10 P-LEV10SRK 3/8” M18X1.5 10
P-TEV12SRK 3/8” M20X1.5 12 P-LEV12SRK 3/8” M20X1.5 12
P-TEV14SRK 1/2” M22X1.5 14 P-LEV14SRK 1/2” M22X1.5 14
P-TEV16SRK 1/2” M24X1.5 16 P-LEV16SRK 1/2” M24X1.5 16
P-TEV20SRK 3/4” M30X2.0 20 P-LEV20SRK 3/4” M30X2.0 20
P-TEV25SRK 1” M36X2.0 25 P-LEV25SRK 1” M36X2.0 25
P-TEV30SRK 1.1/4” M42X2.0 30 P-LEV30SRK 1.1/4” M42X2.0 30
P-TEV38SRK 1.1/2” M52X2.0 38 P-LEV38SRK 1.1/2” M52X2.0 38

PH: 0800 FITTINGS 24 HOURS. B20
