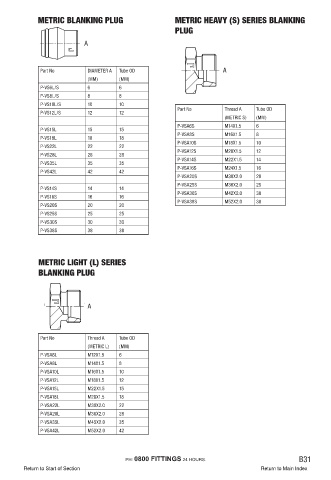

METRIC BLANKING PLUG METRIC HEAVY (S) SERIES BLANKING
PLUG

A

Part No DIAMETER A Tube OD A
(MM) (MM)
P-VS6L/S 6 6
P-VS8L/S 8 8
P-VS10L/S 10 10
Part No Thread A Tube OD
P-VS12L/S 12 12
(METRIC S) (MM)
P-VSA6S M14X1.5 6
P-VS15L 15 15
P-VSA8S M16X1.5 8
P-VS18L 18 18
P-VSA10S M18X1.5 10
P-VS22L 22 22
P-VSA12S M20X1.5 12
P-VS28L 28 28
P-VSA14S M22X1.5 14
P-VS35L 35 35
P-VSA16S M24X1.5 16
P-VS42L 42 42
P-VSA20S M30X2.0 20
P-VSA25S M36X2.0 25
P-VS14S 14 14
P-VSA30S M42X2.0 30
P-VS16S 16 16
P-VSA38S M52X2.0 38
P-VS20S 20 20
P-VS25S 25 25
P-VS30S 30 30
P-VS38S 38 38

METRIC LIGHT (L) SERIES
BLANKING PLUG

A

Part No Thread A Tube OD
(METRIC L) (MM)
P-VSA6L M12X1.5 6
P-VSA8L M14X1.5 8
P-VSA10L M16X1.5 10
P-VSA12L M18X1.5 12
P-VSA15L M22X1.5 15
P-VSA18L M26X1.5 18
P-VSA22L M30X2.0 22
P-VSA28L M36X2.0 28
P-VSA35L M45X2.0 35
P-VSA42L M52X2.0 42

PH: 0800 FITTINGS 24 HOURS. B31
