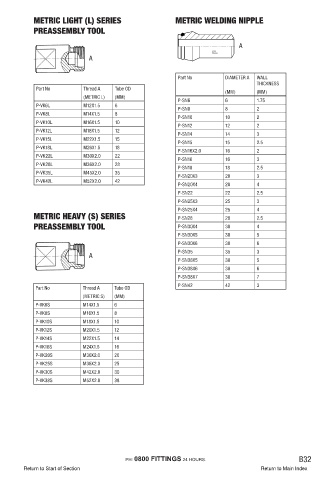

Page 98 - Fluid Fitting 2018_extended

METRIC LIGHT (L) SERIES METRIC WELDING NIPPLE
PREASSEMBLY TOOL

A

A

Part No DIAMETER A WALL
THICKNESS
Part No Thread A Tube OD
(MM) (MM)
(METRIC L) (MM)
P-SN6 6 1.75
P-VK6L M12X1.5 6
P-SN8 8 2
P-VK8L M14X1.5 8
P-SN10 10 2
P-VK10L M16X1.5 10
P-SN12 12 2
P-VK12L M18X1.5 12
P-SN14 14 3
P-VK15L M22X1.5 15
P-SN15 15 2.5
P-VK18L M26X1.5 18
P-SN16X2.0 16 2
P-VK22L M30X2.0 22
P-SN16 16 3
P-VK28L M36X2.0 28
P-SN18 18 2.5
P-VK35L M45X2.0 35
P-SN20X3 20 3
P-VK42L M52X2.0 42
P-SN20X4 20 4
P-SN22 22 2.5
P-SN25X3 25 3
P-SN25X4 25 4
METRIC HEAVY (S) SERIES P-SN28 28 2.5
PREASSEMBLY TOOL P-SN30X4 30 4
P-SN30X5 30 5
P-SN30X6 30 6
P-SN35 35 3
A
P-SN38X5 38 5
P-SN38X6 38 6
P-SN38X7 38 7
P-SN42 42 3
Part No Thread A Tube OD
(METRIC S) (MM)
P-VK6S M14X1.5 6
P-VK8S M16X1.5 8
P-VK10S M18X1.5 10
P-VK12S M20X1.5 12
P-VK14S M22X1.5 14
P-VK16S M24X1.5 16
P-VK20S M30X2.0 20
P-VK25S M36X2.0 25
P-VK30S M42X2.0 30
P-VK38S M52X2.0 38
