Fundamentals of Stress and Vibration 1. Mathematics for Structural mechanics
[A Practical guide for aspiring Designers / Analysts]

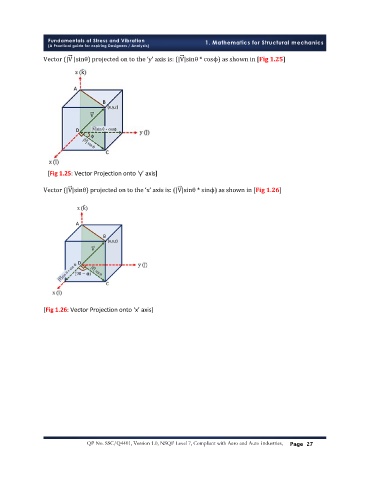

Vector (|V |sinθ) projected on to the ‘y’ axis is: (|V |sinθ * cosϕ) as shown in [Fig 1.25]
[Fig 1.25: Vector Projection onto ‘y’ axis]
Vector (|V |sinθ) projected on to the ‘x’ axis is: (|V |sinθ * sinϕ) as shown in [Fig 1.26]
[Fig 1.26: Vector Projection onto ‘x’ axis]
