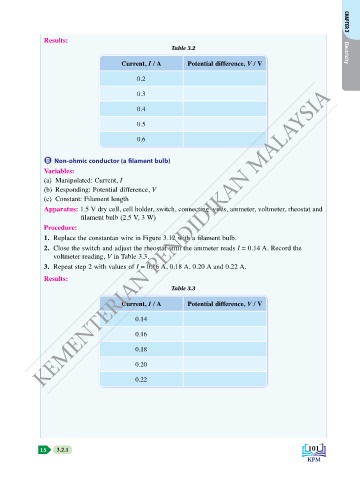

P. 111
Results: CHAPTER 3
Table 3.2 Electricity
Current, I / A Potential difference, V / V
0.2
KEMENTERIAN PENDIDIKAN MALAYSIA
0.3
0.4
0.5
0.6
B Non-ohmic conductor (a filament bulb)
Variables:
(a) Manipulated: Current, I
(b) Responding: Potential difference, V
(c) Constant: Filament length
Apparatus: 1.5 V dry cell, cell holder, switch, connecting wires, ammeter, voltmeter, rheostat and
filament bulb (2.5 V, 3 W)
Procedure:
1. Replace the constantan wire in Figure 3.12 with a filament bulb.
2. Close the switch and adjust the rheostat until the ammeter reads I = 0.14 A. Record the
voltmeter reading, V in Table 3.3.
3. Repeat step 2 with values of I = 0.16 A, 0.18 A, 0.20 A and 0.22 A.
Results:
Table 3.3
Current, I / A Potential difference, V / V
0.14
0.16
0.18
0.20
0.22
LS 3.2.1 101
