Ventilator Waveform Analysis 337

WAVEFORMS DEVELOPED DURING
PRESSURE-CONTROLLED VENTILATION

Pressure-Controlled Ventilation (PCV)

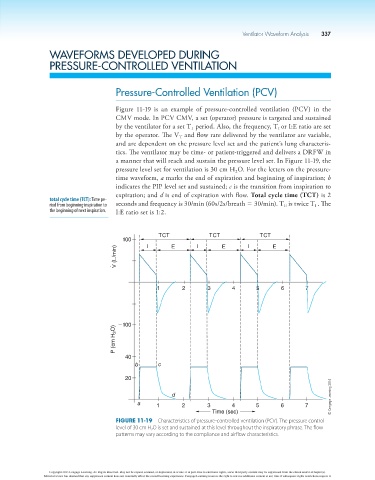

Figure 11-19 is an example of pressure-controlled ventilation (PCV) in the
CMV mode. In PCV CMV, a set (operator) pressure is targeted and sustained
by the ventilator for a set T period. Also, the frequency, T or I:E ratio are set
I
I
by the operator. The V and flow rate delivered by the ventilator are variable,
T
and are dependent on the pressure level set and the patient’s lung characteris-
tics. The ventilator may be time- or patient-triggered and delivers a DRFW in
a manner that will reach and sustain the pressure level set. In Figure 11-19, the
pressure level set for ventilation is 30 cm H O. For the letters on the pressure-
2
time waveform, a marks the end of expiration and beginning of inspiration; b
indicates the PIP level set and sustained; c is the transition from inspiration to
expiration; and d is end of expiration with flow. Total cycle time (TCT) is 2
total cycle time (TCT): Time pe-
riod from beginning inspiration to seconds and frequency is 30/min (60s/2s/breath 5 30/min). T is twice T . The
I
E
the beginning of next inspiration. I:E ratio set is 1:2.

TCT TCT TCT
100 I E I E I E
V (L/min)

1 2 3 4 5 6 7

2100
P (cm H 2 O)

40
b c
20

d © Cengage Learning 2014
a 1 2 3 4 5 6 7
Time (sec)
Figure 11-19 Characteristics of pressure-controlled ventilation (PCV). The pressure control
level of 30 cm H 2 O is set and sustained at this level throughout the inspiratory phrase. The flow
patterns may vary according to the compliance and airflow characteristics.
