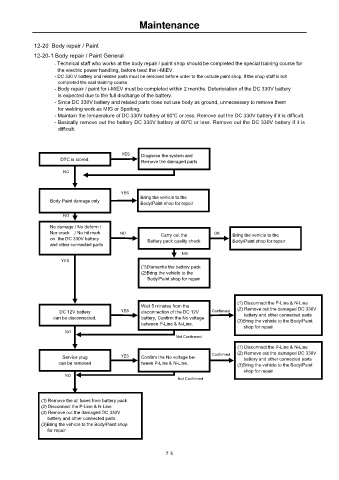

Maintenance

12-20 Body repair / Paint
12-20-1 Body repair / Paint General
- Technical staff who works at the body repair / paint shop should be completed the special training course for
the electric power handling, before treat the i-MiEV.
- DC 330 V battery and related parts must be removed before order to the outside paint shop, if the shop staff is not
completed the said training course.
- Body repair / paint for i-MiEV must be completed within 2 months. Deterioration of the DC 330V battery
is expected due to the full discharge of the battery.
- Since DC 330V battery and related parts does not use body as ground, unnecessary to remove them
for welding work as MIG or Spotting.
- Maintain the temperature of DC 330V battery at 60℃ or less. Remove out the DC 330V battery if it is difficult.
- Basically remove out the battery DC 330V battery at 60℃ or less. Remove out the DC 330V battery if it is
difficult.

YES Diagnose the system and
DTC is stored. Remove the damaged parts

NO

YES
Bring the vehicle to the
Body Paint damage only Body/Paint shop for repair

NO
No damage / No deform /
Nor crack / No hit mark NO Carry out the OK Bring the vehicle to the
on the DC 330V battery Battery pack quality check Body/Paint shop for repair
and other connected parts
NG
YES
(1)Dismantle the battery pack
(2)Bring the vehicle to the
Body/Paint shop for repair

(1) Disconnect the P-Line & N-Line
Wait 5 minutes from the
DC 12V battery YES disconnection of the DC 12V Confirmed (2) Remove out the damaged DC 330V
battery and other connected parts
can be disconnected. battery, Confirm the No voltage (3)Bring the vehicle to the Body/Paint
between P-Line & N-Line.
shop for repair
NO
Not Confirmed
(1) Disconnect the P-Line & N-Line

Service plug YES Confirm the No voltage be- Confirmed (2) Remove out the damaged DC 330V
battery and other connected parts
can be removed tween P-Line & N-Line. (3)Bring the vehicle to the Body/Paint
shop for repair
NO
Not Confirmed

(1) Remove the all fuses from battery pack
(2) Disconnect the P-Line & N-Line
(3) Remove out the damaged DC 330V
battery and other connected parts
(3)Bring the vehicle to the Body/Paint shop
for repair
