Maintenance

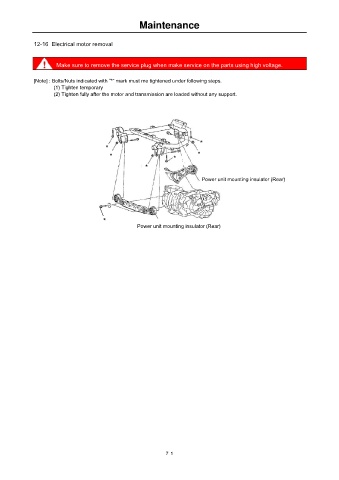

12-16 Electrical motor removal

Make sure to remove the service plug when make service on the parts using high voltage.

[Note] : Bolts/Nuts indicated with “*” mark must me tightened under following steps.
(1) Tighten temporary
(2) Tighten fully after the motor and transmission are loaded without any support.

*
*
* * *

*
Power unit mounting insulator (Rear)

*
Power unit mounting insulator (Rear)
