Maintenance

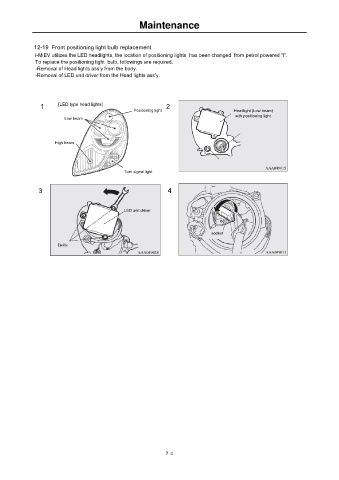

12-19 Front positioning light bulb replacement
i-MiEV utilizes the LED headlights, the location of positioning lights has been changed from petrol powered “I”.
To replace the positioning light bulb, followings are required.
-Removal of Head lights ass’y from the body.
-Removal of LED unit driver from the Head lights ass’y.

1 [LED type head lights] 2
Positioning light Headlight (Low beam)
with positioning light
Low beam

High beam

Turn signal light

3 4

LED unit driver

socket

Bolts

７４
