Maintenance

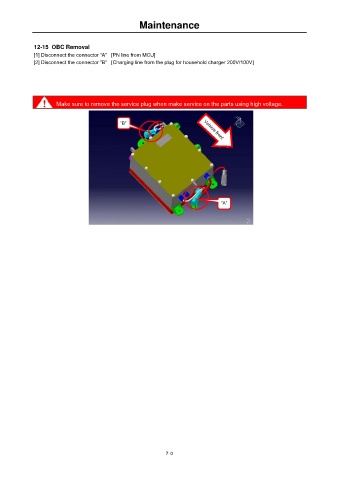

12-15 OBC Removal
[1] Disconnect the connector “A” [PN line from MCU]
[2] Disconnect the connector “B” [Charging line from the plug for household charger 200V/100V]
Make sure to remove the service plug when make service on the parts using high voltage.
“B” Vehicle front
“A”
