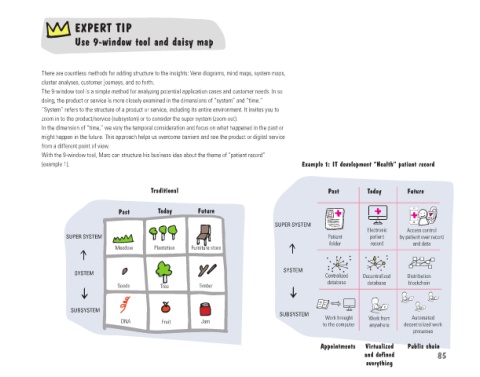

EXPERT TIP
Use 9-window tool and daisy map

There are countless methods for adding structure to the insights: Venn diagrams, mind maps, system maps,
cluster analyses, customer journeys, and so forth.
The 9-window tool is a simple method for analyzing potential application cases and customer needs. In so
doing, the product or service is more closely examined in the dimensions of “system” and “time.”
“System” refers to the structure of a product or service, including its entire environment. It invites you to
zoom in to the product/service (subsystem) or to consider the super system (zoom out).
In the dimension of “time,” we vary the temporal consideration and focus on what happened in the past or
might happen in the future. This approach helps us overcome barriers and see the product or digital service
from a different point of view.
With the 9-window tool, Marc can structure his business idea about the theme of “patient record”
(example 1). Example 1: IT development “Health” patient record

Traditional Past Today Future

Past Today Future

SUPER SYSTEM
Electronic Access control
SUPER SYSTEM Patient patient by patient over record
folder record and data
Meadow Plantation Furniture store

SYSTEM SYSTEM Centralized Decentralized Distribution
database database blockchain
Seeds Tree Timber

SUBSYSTEM
SUBSYSTEM
Automated
Work brought
DNA Fruit Jam to the computer Work from decentralized work
anywhere
processes
Appointments Virtualized Public chain
and defined 85
everything
