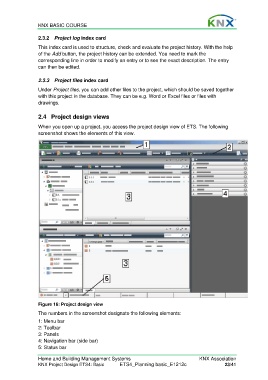

KNX BASIC COURSE

2.3.2 Project log index card
This index card is used to structure, check and evaluate the project history. With the help
of the Add button, the project history can be extended. You need to mark the
corresponding line in order to modify an entry or to see the exact description. The entry
can then be edited.

2.3.3 Project files index card
Under Project files, you can add other files to the project, which should be saved together
with this project in the database. They can be e.g. Word or Excel files or files with
drawings.

2.4 Project design views

When you open up a project, you access the project design view of ETS. The following
screenshot shows the elements of this view.

Figure 16: Project design view
The numbers in the screenshot designate the following elements:
1: Menu bar
2: Toolbar
3: Panels
4: Navigation bar (side bar)
5: Status bar
