KNX BASIC COURSE

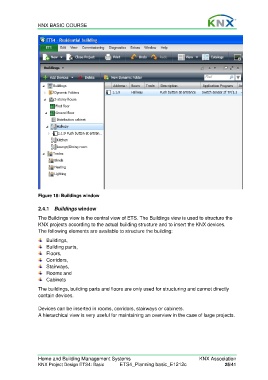

Figure 18: Buildings window

2.4.1 Buildings window

The Buildings view is the central view of ETS. The Buildings view is used to structure the
KNX projects according to the actual building structure and to insert the KNX devices.
The following elements are available to structure the building:

Buildings,
Building parts,
Floors,
Corridors,
Stairways,
Rooms and
Cabinets
The buildings, building parts and floors are only used for structuring and cannot directly
contain devices.

Devices can be inserted in rooms, corridors, stairways or cabinets.
A hierarchical view is very useful for maintaining an overview in the case of large projects.
