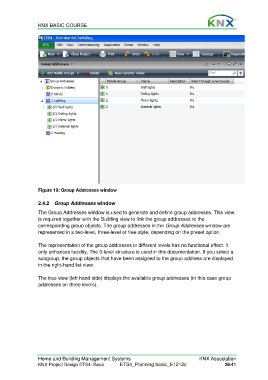

Figure 19: Group Addresses window

2.4.2 Group Addresses window
The Group Addresses window is used to generate and define group addresses. This view
is required together with the Building view to link the group addresses to the
corresponding group objects. The group addresses in the Group Addresses window are
represented in a two-level, three-level or free style, depending on the preset option.

The representation of the group addresses in different levels has no functional effect. It
only enhances lucidity. The 3-level structure is used in this documentation. If you select a
subgroup, the group objects that have been assigned to the group address are displayed
in the right-hand list view.

The tree view (left-hand side) displays the available group addresses (in this case group
addresses on three levels).
