KNX BASIC COURSE

this line and link all group addresses used in the visualisation with this application. The
great advantage of this application is that it again ensures that all the filter tables in a
project are calculated automatically.
A dummy application normally has a very large address capacity and variable object
types, so that it is possible to assign any number of addresses.

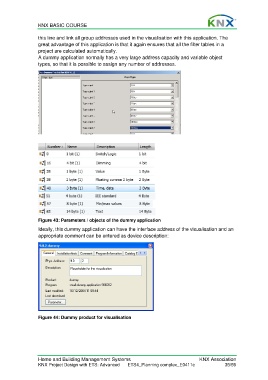

Figure 43: Parameters / objects of the dummy application

Ideally, this dummy application can have the interface address of the visualisation and an
appropriate comment can be entered as device description:

Figure 44: Dummy product for visualisation

Home and Building Management Systems KNX Association
KNX Project Design with ETS: Advanced ETS4_Planning complex_E0411c 35/59
