KNX BASIC COURSE

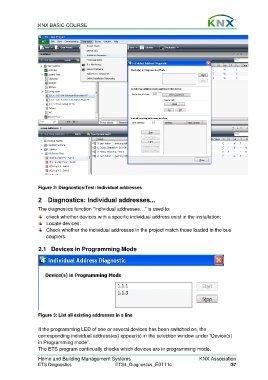

Figure 2: Diagnostics/Test: Individual addresses
2 Diagnostics: Individual addresses...
The diagnostics function “Individual addresses…” is used to:
check whether devices with a specific individual address exist in the installation;
Locate devices:
Check whether the individual addresses in the project match those loaded in the bus
couplers.
2.1 Devices in Programming Mode
Figure 3: List all existing addresses in a line
If the programming LED of one or several devices has been switched on, the
corresponding individual address(es) appear(s) in the selection window under “Device(s)
in Programming mode”.
The ETS program continually checks which devices are in programming mode.
