KNX BASIC COURSE
If one wishes to establish, which individual addresses have already been assigned in a
line or a line segment, this can be checked via the “Scan” button. The addresses that
have been found are displayed as well as the mask version of the bus coupler.

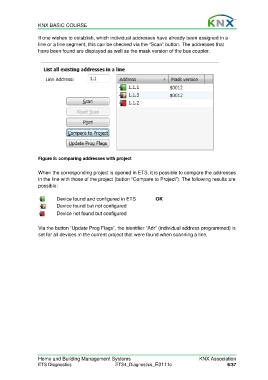

Figure 8: comparing addresses with project
When the corresponding project is opened in ETS, it is possible to compare the addresses
in the line with those of the project (button “Compare to Project”). The following results are
possible:
Device found and configured in ETS OK
Device found but not configured
Device not found but configured
Via the button “Update Prog Flags”, the identifier “Adr” (individual address programmed) is
set for all devices in the current project that were found when scanning a line.
