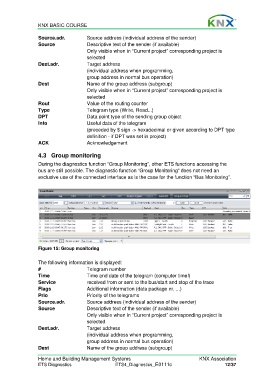

KNX BASIC COURSE

Source.adr. Source address (individual address of the sender)
Source Descriptive text of the sender (if available)
Only visible when in “Current project” corresponding project is
selected
Dest.adr. Target address
(individual address when programming,
group address in normal bus operation)
Dest Name of the group address (subgroup)
Only visible when in “Current project” corresponding project is
selected
Rout Value of the routing counter
Type Telegram type (Write, Read...)
DPT Data point type of the sending group object
Info Useful data of the telegram
(preceded by $ sign -> hexadecimal or given according to DPT type
definition - if DPT was set in project)
ACK Acknowledgement

4.3 Group monitoring

During the diagnostics function “Group Monitoring”, other ETS functions accessing the
bus are still possible. The diagnostic function “Group Monitoring” does not need an
exclusive use of the connected interface as is the case for the function “Bus Monitoring”.

Figure 15: Group monitoring

The following information is displayed:
# Telegram number
Time Time and date of the telegram (computer time!)
Service received from or sent to the bus/start and stop of the trace
Flags Additional information (data package nr. ...)
Prio Priority of the telegrams
Source.adr. Source address (individual address of the sender)
Source Descriptive text of the sender (if available)
Only visible when in “Current project” corresponding project is
selected
Dest.adr. Target address
(individual address when programming,
group address in normal bus operation)
Dest Name of the group address (subgroup)

Home and Building Management Systems KNX Association
ETS Diagnostics ETS4_Diagnostics_E0111c 12/37
