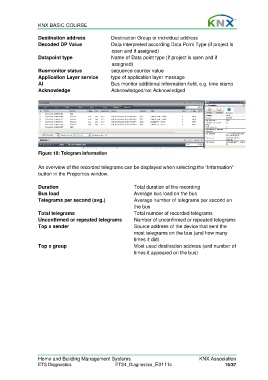

KNX BASIC COURSE

Destination address Destination Group or individual address
Decoded DP Value Data interpreted according Data Point Type (if project is
open and if assigned)
Datapoint type Name of Data point type (if project is open and if
assigned)
Busmonitor status sequence counter value
Application Layer service type of application layer message
AI Bus monitor additional information field, e.g. time stamp
Acknowledge Acknowledged/not Acknowledged

Figure 18: Telegram information

An overview of the recorded telegrams can be displayed when selecting the “Information”
button in the Properties window.

Duration Total duration of the recording
Bus load Average bus load on the bus
Telegrams per second (avg.) Average number of telegrams per second on
the bus
Total telegrams Total number of recorded telegrams
Unconfirmed or repeated telegrams Number of unconfirmed or repeated telegrams
Top x sender Source address of the device that sent the
most telegrams on the bus (and how many
times it did)
Top x group Most used destination address (and number of
times it appeared on the bus)
