KNX BASIC COURSE

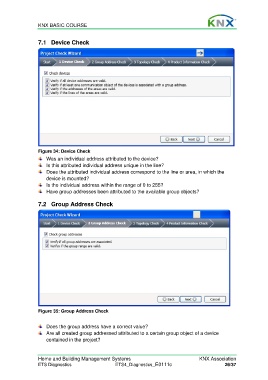

7.1 Device Check

Figure 34: Device Check
Was an individual address attributed to the device?
Is this attributed individual address unique in the line?
Does the attributed individual address correspond to the line or area, in which the
device is mounted?
Is the individual address within the range of 0 to 255?
Have group addresses been attributed to the available group objects?

7.2 Group Address Check

Figure 35: Group Address Check

Does the group address have a correct value?
Are all created group addressed attributed to a certain group object of a device
contained in the project?
