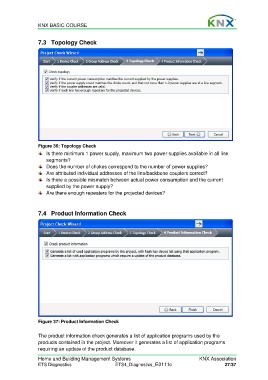

KNX BASIC COURSE

7.3 Topology Check

Figure 36: Topology Check
Is there minimum 1 power supply, maximum two power supplies available in all line
segments?
Does the number of chokes correspond to the number of power supplies?
Are attributed individual addresses of the line/backbone couplers correct?
Is there a possible mismatch between actual power consumption and the current
supplied by the power supply?
Are there enough repeaters for the projected devices?

7.4 Product Information Check

Figure 37: Product Information Check

The product information check generates a list of application programs used by the
products contained in the project. Moreover it generates a list of application programs
requiring an update of the product database.
