KNX BASIC COURSE

4.9 Replaying telegrams
In order to verify more complex processes, ETS also allows replaying telegrams
previously recorded and saved to file. This is only possible using the “Group Monitoring”
function.
In order to replay the recorded telegrams, make sure that the PC is connected to the bus
and hit the “Replay Telegrams” button. The “Play Telegrams Options” window is opened:
the file that shall be replayed must be entered in the “File name” field or must be selected
via the “Search” button.

The time regime can also be specified. It is possible to play the telegrams “as recorded” or
“without delay”. The option “without delay” is the best option, when time interval between
recorded telegrams is longer in the selected file.

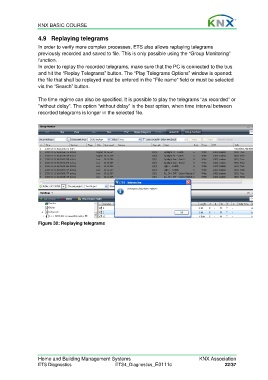

Figure 30: Replaying telegrams

Home and Building Management Systems KNX Association
ETS Diagnostics ETS4_Diagnostics_E0111c 22/37
