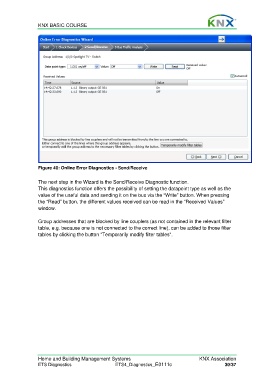

Figure 40: Online Error Diagnostics - Send/Receive

The next step in the Wizard is the Send/Receive Diagnostic function.
This diagnostics function offers the possibility of setting the datapoint type as well as the
value of the useful data and sending it on the bus via the “Write” button. When pressing
the “Read” button, the different values received can be read in the “Received Values”
window.

Group addresses that are blocked by line couplers (as not contained in the relevant filter
table, e.g. because one is not connected to the correct line), can be added to those filter
tables by clicking the button “Temporarily modify filter tables”.
