KNX BASIC COURSE

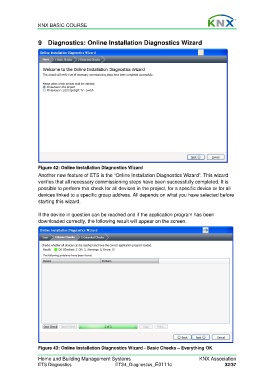

9 Diagnostics: Online Installation Diagnostics Wizard
Figure 42: Online Installation Diagnostics Wizard
Another new feature of ETS is the “Online Installation Diagnostics Wizard”. This wizard
verifies that all necessary commissioning steps have been successfully completed. It is
possible to perform this check for all devices in the project, for a specific device or for all
devices linked to a specific group address. All depends on what you have selected before
starting this wizard.
If the device in question can be reached and if the application program has been
downloaded correctly, the following result will appear on the screen.
Figure 43: Online Installation Diagnostics Wizard - Basic Checks – Everything OK
Home and Building Management Systems KNX Association
ETS Diagnostics ETS4_Diagnostics_E0111c 32/37
