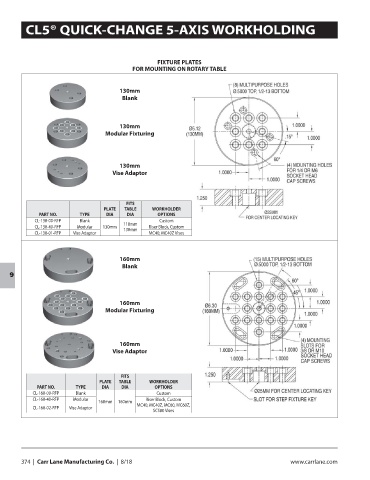

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING

FIXTURE PLATES
FOR MOUNTING ON ROTARY TABLE

130mm
Blank

130mm
Modular Fixturing

130mm
Vise Adaptor

FITS
PLATE TABLE WORKHOLDER
PART NO. TYPE DIA DIA OPTIONS
CL-130-00-RFP Blank Custom
CL-130-40-RFP Modular 130mm 110mm Riser Block, Custom
130mm
CL-130-01-RFP Vise Adaptor MC40, MC40Z Vises

160mm
Blank

9

160mm
Modular Fixturing

160mm
Vise Adaptor

FITS
PLATE TABLE WORKHOLDER
PART NO. TYPE DIA DIA OPTIONS
CL-160-00-RFP Blank Custom
CL-160-40-RFP Modular Riser Block, Custom
160mm 160mm
CL-160-02-RFP Vise Adaptor MC40, MC40Z, MC60, MC60Z,
SCS80 Vises

374 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
