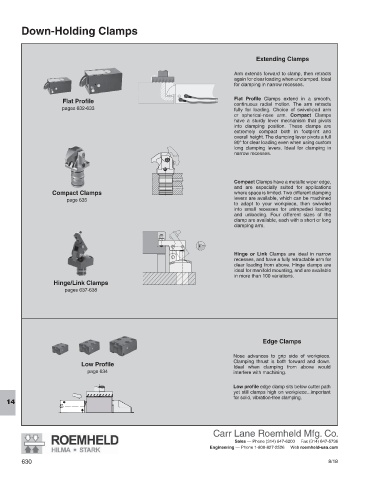

Down-Holding Clamps

Extending Clamps

Arm extends forward to clamp, then retracts
again for clear loading when unclamped. Ideal
for clamping in narrow recesses.

Flat Profile Clamps extend in a smooth,
Flat Profile
continuous radial motion. The arm retracts
pages 632-633 fully for loading. Choice of swivel-pad arm
or spherical-nose arm. Compact Clamps
have a sturdy lever mechanism that pivots
into clamping position. These clamps are
extremely compact both in footprint and
overall height. The clamping lever pivots a full
90° for clear loading even when using custom
long clamping levers. Ideal for clamping in
narrow recesses.

Compact Clamps have a metallic wiper edge,
and are especially suited for applications
Compact Clamps where space is limited. Two different clamping
page 635 levers are available, which can be machined
to adapt to your workpiece, then swiveled
into small recesses for unimpeded loading
and unloading. Four different sizes of the
clamp are available, each with a short or long
clamping arm.

Hinge or Link Clamps are ideal in narrow
recesses, and have a fully retractable arm for
clear loading from above. Hinge clamps are
ideal for manifold mounting, and are available
in more than 100 variations.
Hinge/Link Clamps
pages 637-638

Edge Clamps

Nose advances to grip side of workpiece.
Clamping thrust is both forward and down.
Low Profile
Ideal when clamping from above would
page 634 interfere with machining.
Low profile edge clamp sits below cutter path
yet still clamps high on workpiece...important
for solid, vibration-free clamping.
