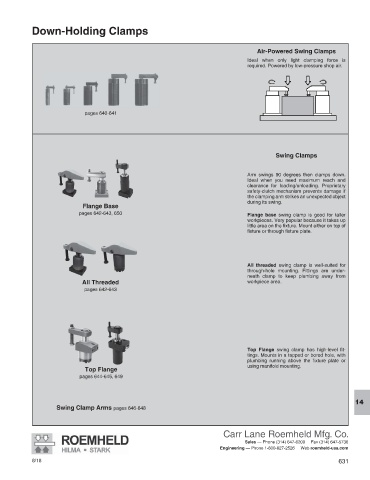

Page 633 - CarrLaneCatalog_2019ed-c.pdf

Down-Holding Clamps

Air-Powered Swing Clamps
Ideal when only light clamping force is
required. Powered by low-pressure shop air.

pages 640-641

Swing Clamps

Arm swings 90 degrees then clamps down.
Ideal when you need maximum reach and
clearance for loading/unloading. Proprietary
safety-clutch mechanism prevents damage if
the clamping arm strikes an unexpected object
during its swing.
Flange Base
pages 642-643, 650 Flange base swing clamp is good for taller
workpieces. Very popular because it takes up
little area on the fixture. Mount either on top of
fixture or through fixture plate.

All threaded swing clamp is well-suited for
through-hole mounting. Fittings are under-
neath clamp to keep plumbing away from
All Threaded workpiece area.
pages 642-643

Top Flange swing clamp has high-level fit-
tings. Mounts in a tapped or bored hole, with
plumbing running above the fixture plate or
using manifold mounting.
Top Flange
pages 644-645, 649

14
Swing Clamp Arms pages 646-648
