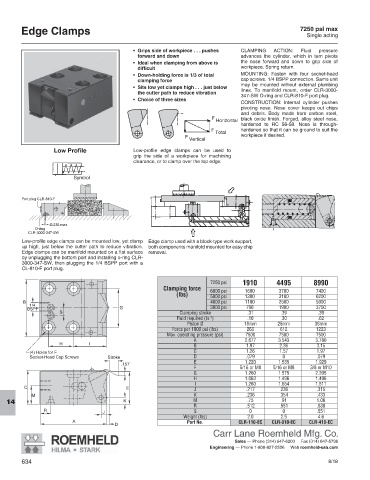

Edge Clamps 7250 psi max
Single acting

• Grips side of workpiece . . . pushes CLAMPING ACTION: Fluid pressure
forward and down advances the cylinder, which in turn pivots
• Ideal when clamping from above is the nose forward and down to grip side of
difficult workpiece. Spring return.
• Down-holding force is 1/3 of total MOUNTING: Fasten with four socket-head
clamping force cap screws. 1/4 BSPP connection. Same unit
may be mounted without external plumbing
• Sits low yet clamps high . . . just below
the cutter path to reduce vibration lines. To manifold mount, order CLR-3000-
347-SW O-ring and CLR-810-F port plug.
• Choice of three sizes
CONSTRUCTION: Internal cylinder pushes
pivoting nose. Nose cover keeps out chips
and debris. Body made from carbon steel,
F black oxide finish. Forged, alloy steel nose,
Horizontal
hardened to RC 56-58. Nose is through-
F hardened so that it can be ground to suit the
Total
F workpiece if desired.
Vertical
Low Profile Low-profile edge clamps can be used to
grip the side of a workpiece for machining
clearance, or to clamp over the top edge.
Symbol

Port plug CLR-810-F

Ø.236 max
O-ring
CLR-3000-347-SW
Low-profile edge clamps can be mounted low, yet clamp Edge clamp used with a block-type work support,
up high, just below the cutter path to reduce vibration. both components manifold mounted for easy chip
Edge clamps can be manifold mounted on a flat surface removal.
by unplugging the bottom port and installing o-ring CLR-
3000-347-SW, then plugging the 1/4 BSPP port with a
CL-810-F port plug.

7250 psi 1910 4495 8990
Clamping force
6000 psi 1600 3700 7400
(lbs) 5000 psi 1300 3100 6200
4000 psi 1100 2500 5000
3000 psi 790 1900 3700
Clamping stroke .31 .39 .39
3
Fluid required (in. ) .10 .30 .62
Piston Ø 16mm 25mm 36mm
Force per 1000 psi (lbs) 260 612 1223
Max. operating pressure (psi) 7500 7500 7500
A 2.677 3.543 3.780
B 1.97 2.36 3.15
C 1.26 1.57 1.97
D .079 0 .079
E 1.220 1.535 1.929
F 5/16 or M8 5/16 or M8 3/8 or M10
G 1.260 1.575 2.205
H 1.063 1.496 1.496
I 1.260 1.654 1.811
J .217 .236 .315
K .236 .354 .433
M .75 .91 1.06
14
R .512 .551 .630
S 0 0 .551
Weight (lbs) 2.0 2.5 4.6
Part No. CLR-110-EC CLR-310-EC CLR-410-EC
