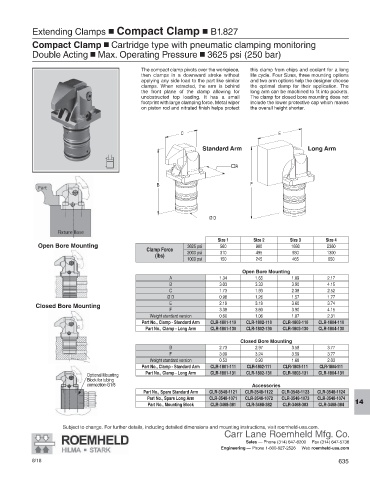

Page 637 - CarrLaneCatalog_2019ed-c.pdf

Extending Clamps Compact Clamp B1.827
J
J
Compact Clamp Cartridge type with pneumatic clamping monitoring
J
Double Acting Max. Operating Pressure 3625 psi (250 bar)
J
J
The compact clamp pivots over the workpiece, this clamp from chips and coolant for a long
then clamps in a downward stroke without life cycle. Four Sizes, three mounting options
applying any side load to the part like similar and two arm options help the designer choose
clamps. When retracted, the arm is behind the optimal clamp for their application. The
the front plane of the clamp allowing for long arm can be machined to fit into pockets.
unobstructed top loading. It has a small The clamp for closed bore mounting does not
footprint with large clamping force. Metal wiper include the lower protective cap which makes
on piston rod and nitrated finish helps protect the overall height shorter.

C E

Standard Arm Long Arm

†A

B F

Ø D

Size 1 Size 2 Size 3 Size 4
Open Bore Mounting 3625 psi 560 900 1680 2360
Clamp Force 2000 psi 310 495 930 1300
(lbs)
1000 psi 150 245 465 650

Open Bore Mounting
A 1.34 1.65 1.89 2.17
B 3.03 3.33 3.90 4.15
C 1.73 1.93 2.38 2.52
Ø D 0.98 1.26 1.57 1.77
E 2.19 3.19 3.60 3.74
Closed Bore Mounting
F 3.38 3.60 3.90 4.15
Weight standard version 0.60 1.06 1.87 2.31
Part No., Clamp - Standard Arm CLR-1801-110 CLR-1802-110 CLR-1803-110 CLR-1804-110
Part No., Clamp - Long Arm CLR-1801-130 CLR-1802-130 CLR-1803-130 CLR-1804-130

Closed Bore Mounting
B 2.73 2.97 3.58 3.77
F 3.09 3.24 3.59 3.77
Weight standard version 0.53 0.93 1.68 2.03
Part No., Clamp - Standard Arm CLR-1801-111 CLR-1802-111 CLR-1803-111 CLR-1804-111
Optional Mounting Part No., Clamp - Long Arm CLR-1801-131 CLR-1802-131 CLR-1803-131 CLR-1804-131
Block for tubing
connection-G1/8 Accessories
Part No., Spare Standard Arm CLR-3548-1121 CLR-3548-1122 CLR-3548-1123 CLR-3548-1124
Part No., Spare Long Arm CLR-3548-1071 CLR-3548-1072 CLR-3548-1073 CLR-3548-1074
Part No., Mounting Block CLR-3468-381 CLR-3468-382 CLR-3468-383 CLR-3468-384 14

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
