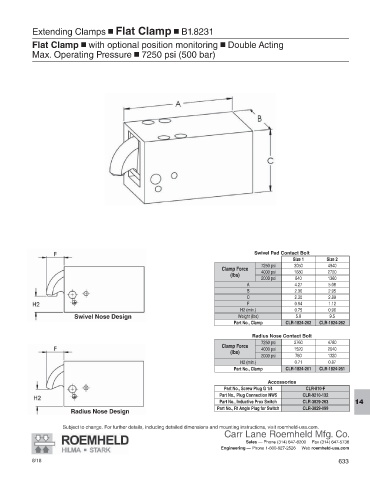

Extending Clamps Flat Clamp B1.8231
J
J
Flat Clamp with optional position monitoring Double Acting
J
J
Max. Operating Pressure 7250 psi (500 bar)
J

Swivel Pad Contact Bolt
Size 1 Size 2
7250 psi 3050 4940
Clamp Force 4000 psi 1680 2720
(lbs)
2000 psi 840 1360
A 4.27 5.08
B 2.36 2.95
C 2.30 2.89
F 0.94 1.12
H2 (min.) 0.75 0.96
Swivel Nose Design Weight (lbs) 5.0 9.5
Part No., Clamp CLR-1824-202 CLR-1824-262

Radius Nose Contact Bolt
7250 psi 2760 4780
Clamp Force 4000 psi 1520 2640
(lbs)
2000 psi 760 1320
H2 (min.) 0.71 0.87
Part No., Clamp CLR-1824-201 CLR-1824-261
Accessories
Part No., Screw Plug G 1/4 CLR-810-F
Part No., Plug Connection NW5 CLR-9210-132
Part No., Inductive Prox Switch CLR-3829-263
14
Part No., Rt Angle Plug for Switch CLR-3829-099
Radius Nose Design

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
