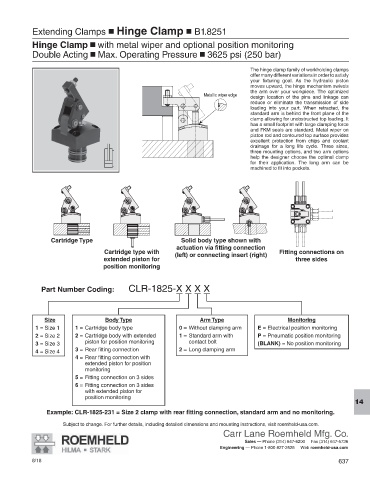

Extending Clamps Hinge Clamp B1.8251
J
J
Hinge Clamp with metal wiper and optional position monitoring
J
Double Acting Max. Operating Pressure 3625 psi (250 bar)
J
J
The hinge clamp family of workholding clamps
offer many different variations in order to satisfy
your fixturing goal. As the hydraulic piston
moves upward, the hinge mechanism swivels
the arm over your workpiece. The optimized
Metallic wiper edge
design location of the pins and linkage can
reduce or eliminate the transmission of side
loading into your part. When retracted, the
standard arm is behind the front plane of the
clamp allowing for unobstructed top loading. It
has a small footprint with large clamping force
and FKM seals are standard. Metal wiper on
piston rod and contoured top surface provides
excellent protection from chips and coolant
drainage for a long life cycle. Three sizes,
three mounting options, and two arm options
help the designer choose the optimal clamp
for their application. The long arm can be
machined to fit into pockets.

Cartridge Type Solid body type shown with
actuation via fitting connection
Cartridge type with Fitting connections on
(left) or connecting insert (right)
extended piston for three sides
position monitoring

Part Number Coding: CLR-1825-X X X X

Size Body Type Arm Type Monitoring
1 = Size 1 1 = Cartridge body type 0 = Without clamping arm E = Electrical position monitoring
2 = Size 2 2 = Cartridge body with extended 1 = Standard arm with P = Pneumatic position monitoring
3 = Size 3 piston for position monitoring contact bolt (BLANK) = No position monitoring
4 = Size 4 3 = Rear fitting connection 2 = Long clamping arm
4 = Rear fitting connection with
extended piston for position
monitoring
5 = Fitting connection on 3 sides
6 = Fitting connection on 3 sides
with extended piston for
position monitoring
14
Example: CLR-1825-231 = Size 2 clamp with rear fitting connection, standard arm and no monitoring.

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
