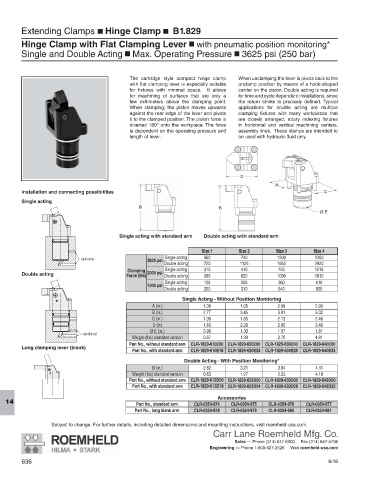

Extending Clamps J Hinge Clamp J B1.829
Hinge Clamp with Flat Clamping Lever with pneumatic position monitoring*
J
Single and Double Acting Max. Operating Pressure 3625 psi (250 bar)
J
J

The cartridge style compact hinge clamp When unclamping the lever is pivots back to the
with flat clamping lever is especially suitable unclamp position by means of a hook-shaped
for fixtures with minimal space. It allows carrier on the piston. Double acting is required
for machining of surfaces that are only a for time and cycle dependent installations, since
few millimeters above the clamping point. the return stroke is precisely defined. Typical
When clamping, the piston moves upwards applications for double acting are multiple
against the rear edge of the lever and pivots clamping fixtures with many workpieces that
it to the clamped position. The piston force is are closely arranged, rotary indexing fixtures
diverted 180° onto the workpiece. The force in horizontal and vertical machining centers,
is dependent on the operating pressure and assembly lines. These clamps are intended to
length of lever. be used with hydraulic fluid only.

D
A
Installation and connecting possibilities C
Single acting
B B
Ø E

Single acting with standard arm e acting with standard Double acting with standard arm

Size 1 Size 2 Size 3 Size 4
optional Single acting 560 740 1300 2200
3625 psi
Double acting 720 1125 1955 2920
Clamping Single acting 310 410 720 1215
Double acting Force (lbs) 2000 psi Double acting 395 620 1080 1610
Single acting 155 205 360 610
1000 psi
Double acting 200 310 540 805
Single Acting - Without Position Monitoring
A (in.) 1.38 1.65 2.09 2.60
B (in.) 2.77 3.45 3.91 5.02
C (in.) 1.30 1.65 2.13 2.48
D (in) 1.83 2.28 2.95 3.48
optional Ø E (in.) 0.98 1.30 1.57 1.81
Weight (lbs) standard version 0.67 1.39 2.70 4.81
Part No., without standard arm CLR-1829-610E00 CLR-1829-620E00 CLR-1829-630E00 CLR-1829-640E00
Long clamping lever (blank)
Part No., with standard arm CLR-1829-610E18 CLR-1829-620E24 CLR-1829-630E28 CLR-1829-640E33
Double Acting - With Position Monitoring*
B (in.) 2.62 3.21 3.94 4.41
Weight (lbs) standard version 0.63 1.27 2.53 4.18
Part No., without standard arm CLR-1829-613D00 CLR-1829-623D00 CLR-1829-633D00 CLR-1829-643D00
Part No., with standard arm CLR-1829-613D18 CLR-1829-623D24 CLR-1829-633D28 CLR-1829-643D33

Accessories
14 Part No., standard arm CLR-0354-974 CLR-0354-975 CLR-0354-976 CLR-0354-977
Part No., long blank arm CLR-0354-978 CLR-0354-979 CLR-0354-980 CLR-0354-981

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
