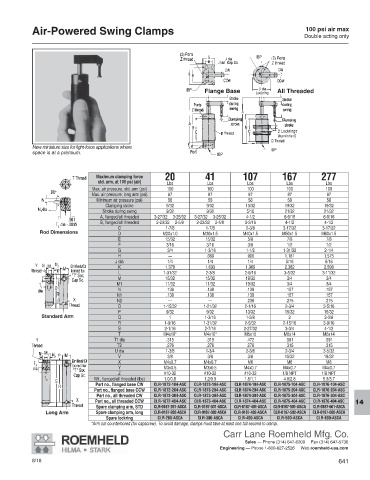

Air-Powered Swing Clamps 100 psi air max
Double acting only

IBP

IBP Flange Base Lockring All Threaded

New miniature size for light-force applications where IBP
space is at a premium. IBP

Maximum clamping force 20 41 107 167 277
std. arm, at 100 psi (air) Lbs Lbs Lbs Lbs Lbs
Max. air pressure, std. arm (psi) 100 100 100 100 100
Max. air pressure, long arm (psi) 87 87 87 87 87
Minimum air pressure (psi) 58 58 58 58 58
Clamping stroke 9/32 9/32 13/32 19/32 19/32
Stroke during swing 9/32 9/32 5/16 21/32 21/32
A, flanged/all threaded 3-27/32 3-25/32 3-27/32 3-25/32 4-1/2 6-9/16 6-9/16
B, flanged/all threaded 2-23/32 2-5/8 2-23/32 2-5/8 3-3/16 4-1/2 4-1/2
C 1-7/8 1-7/8 2-3/8 3-17/32 3-17/32
Rod Dimensions D M20x1.0 M30x1.5 M40x1.5 M50x1.5 M60x1.5
E 15/32 15/32 5/8 7/8 7/8
F 3/16 3/16 3/8 1/2 1/2
G 3/4 1-3/16 1-1/2 1-31/32 2-1/4
H — .669 .906 1.181 1.575
J dia 1/4 1/4 1/4 5/16 5/16
K 1.378 1.693 1.969 2.362 2.598
L 1-31/32 2-3/8 2-9/16 3-5/32 3-11/32
M 15/32 15/32 19/32 3/4 3/4
M1 11/32 11/32 19/32 3/4 3/4
N .138 .138 .138 .157 .157
N1 .138 .138 .138 .157 .157
N2 — — .236 .275 .275
O 1-15/32 1-21/32 2-1/16 2-3/4 3-5/16
P 9/32 9/32 13/32 15/32 15/32
Standard Arm Q 1 1-3/16 1-3/8 2 2-3/8
R 1-9/16 1-31/32 2-5/32 2-15/16 3-9/16
S 2-1/16 2-7/16 2-27/32 3-3/4 4-1/2
T M4x10* M4x10* M5x10 M6x14 M6x14
T1 dia .315 .315 .472 .591 .591
T2 .276 .276 .276 .315 .315
U dia 1-3/8 1-3/4 2-3/8 2-3/4 3-5/32
V 3/8 3/8 3/8 15/32 19/32
X M4x0.7 M4x0.7 M6 M6 M8
Y M3x0.5 M3x0.5 M4x0.7 M4x0.7 M4x0.7
Z #10-32 #10-32 #10-32 1/8 NPT 1/8 NPT
Wt., flanged/all threaded (lbs) 1.0/0.8 1.2/0.9 1.8/1.1 4.0/2.8 5.3/3.7
Part no., flanged base CW CLR-1872-104-ASC CLR-1873-104-ASC CLR-1874-104-ASC CLR-1875-104-ASC CLR-1876-104-ASC
Part no., flanged base CCW CLR-1872-204-ASC CLR-1873-204-ASC CLR-1874-204-ASC CLR-1875-204-ASC CLR-1876-204-ASC
Part no., all threaded CW CLR-1872-304-ASC CLR-1873-304-ASC CLR-1874-304-ASC CLR-1875-304-ASC CLR-1876-304-ASC
Part no., all threaded CCW CLR-1872-404-ASC CLR-1873-404-ASC CLR-1874-404-ASC CLR-1875-404-ASC CLR-1876-404-ASC
14
Spare clamping arm, STD CLR-0187-201-ASCA CLR-0187-301-ASCA CLR-0187-401-ASCA CLR-0187-501-ASCA CLR-0187-601-ASCA
Long Arm Spare clamping arm, long CLR-0187-202-ASCA CLR-0187-302-ASCA CLR-0187-402-ASCA CLR-0187-502-ASCA CLR-0187-602-ASCA
Spare lockring CLR-200-ASCA CLR-300-ASCA CLR-400-ASCA CLR-500-ASCA CLR-600-ASCA
*Arm not counterbored (for capscrew). To avoid damage, clamps must take at least one full second to clamp.
