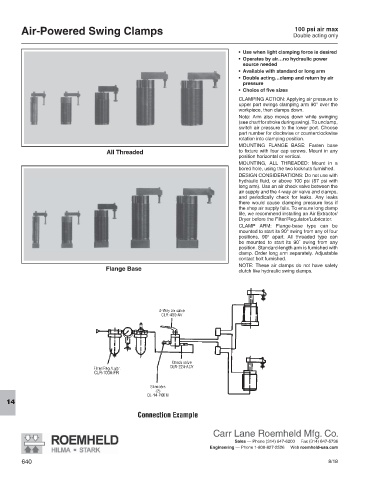

Air-Powered Swing Clamps 100 psi air max
Double acting only

• Use when light clamping force is desired
• Operates by air…no hydraulic power
source needed
• Available with standard or long arm
• Double acting…clamp and return by air
pressure
• Choice of five sizes
CLAMPING ACTION: Applying air pressure to
upper port swings clamping arm 90° over the
workpiece, then clamps down.
Note: Arm also moves down while swinging
(see chart for stroke during swing). To unclamp,
switch air pressure to the lower port. Choose
part number for clockwise or counterclockwise
rotation into clamping position.
MOUNTING FLANGE BASE: Fasten base
All Threaded to fixture with four cap screws. Mount in any
position horizontal or vertical.
MOUNTING, ALL THREADED: Mount in a
bored hole, using the two locknuts furnished.
DESIGN CONSIDERATIONS: Do not use with
hydraulic fluid, or above 100 psi (87 psi with
long arm). Use an air check valve between the
air supply and the 4-way air valve and clamps,
and periodically check for leaks. Any leaks
there would cause clamping pressure loss if
the shop air supply fails. To ensure long clamp
life, we recommend installing an Air Ex tract or/
Dryer before the Filter/Regula tor/Lubricator.
CLAMP ARM: Flange-base type can be
mounted to start its 90° swing from any of four
positions, 90° apart. All threaded type can
be mounted to start its 90˚ swing from any
position. Standard-length arm is furnished with
clamp. Order long arm separately. Adjustable
contact bolt furnished.
NOTE: These air clamps do not have safety
Flange Base clutch like hydraulic swing clamps.

CLR-100A-FR

14
