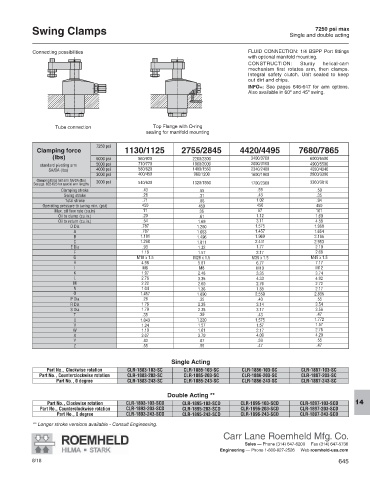

Page 647 - CarrLaneCatalog_2019ed-c.pdf

Swing Clamps 7250 psi max
Single and double acting

Connecting possibilities FLUID CONNECTION: 1/4 BSPP Port fittings
with optional manifold mounting.
CONSTRUCTION: Sturdy helical-cam
mechanism first rotates arm, then clamps.
Integral safety clutch. Unit sealed to keep
out dirt and chips.
INFO+: See pages 646-647 for arm options.
Also available in 60º and 45º swing.

Tube connection Top Flange with O-ring
sealing for manifold mounting

7250 psi
Clamping force 1130/1125 2755/2845 4420/4495 7680/7865
(lbs) 6000 psi 860/920 2200/2300 3400/3700 6000/6500
standard pivoting arm 5000 psi 710/770 1800/2000 2800/3100 4900/5500
SA/DA (lbs) 4000 psi 580/620 1480/1560 2340/2480 4030/4340
3000 psi 400/450 960/1200 1600/1900 2800/3300
Clamping force half arm SA/DA (lbs) 3000 psi 3360/3810
See pgs. 622-623 for special arm lengths 540/630 1320/1560 1700/2360
Clamping stroke .43 .55 .59 .59
Swing stroke .28 .31 .43 .35
Total stroke .71 .86 1.02 .94
Operating pressure to swing min. (psi) 450 450 450 450
Max. oil flow rate (cu.in) 11 36 67 101
Oil to clamp (cu.in.) .20 .61 1.12 1.69
Oil to return (cu.in.) .54 1.69 3.11 4.58
D Dia .787 1.260 1.575 1.969
A .787 1.063 1.457 1.654
B 1.181 1.496 1.969 2.165
C 1.260 1.811 2.441 2.953
E Dia .93 1.32 1.77 2.19
F 1.18 1.57 2.17 2.68
G M18 x 1.5 M28 x 1.5 M35 x 1.5 M45 x 1.5
H 4.98 5.81 6.77 7.17
I M6 M8 M10 M12
K 1.97 2.48 3.35 3.74
L 2.76 3.35 4.33 4.92
M 2.22 2.60 2.76 2.72
N 1.04 1.36 1.85 2.17
O 1.457 1.890 2.559 2.835
P Dia .26 .35 .43 .55
R Dia 1.76 2.35 3.14 3.54
S Dia 1.79 2.38 3.17 3.56
T .35 .39 .43 .47
U 1.043 1.220 1.575 1.772
V 1.34 1.57 1.57 1.57
W 1.10 1.61 2.17 2.76
X 3.07 3.70 4.09 4.29
Y .83 .87 .59 .55
Z .55 .55 .47 .47

Single Acting
Part No., Clockwise rotation CLR-1883-103-SC CLR-1885-103-SC CLR-1886-103-SC CLR-1887-103-SC
Part No., Counterclockwise rotation CLR-1883-203-SC CLR-1885-203-SC CLR-1886-203-SC CLR-1887-203-SC
Part No., 0 degree CLR-1883-243-SC CLR-1885-243-SC CLR-1886-243-SC CLR-1887-243-SC

Double Acting **
Part No., Clockwise rotation CLR-1893-103-SCD CLR-1895-103-SCD CLR-1896-103-SCD CLR-1897-103-SCD 14
Part No., Counterclockwise rotation CLR-1893-203-SCD CLR-1895-203-SCD CLR-1896-203-SCD CLR-1897-203-SCD
Part No., 0 degree CLR-1893-243-SCD CLR-1895-243-SCD CLR-1896-243-SCD CLR-1897-243-SCD
** Longer stroke versions available - Consult Engineering.
