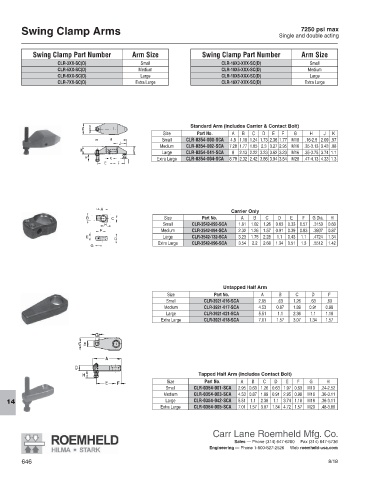

Swing Clamp Arms 7250 psi max
Single and double acting

Swing Clamp Part Number Arm Size Swing Clamp Part Number Arm Size
CLR-3XX-SC(D) Small CLR-18X3-XXX-SC(D) Small
CLR-5XX-SC(D) Medium CLR-18X5-XXX-SC(D) Medium
CLR-6XX-SC(D) Large CLR-18X6-XXX-SC(D) Large
CLR-7XX-SC(D) Extra Large CLR-18X7-XXX-SC(D) Extra Large

Standard Arm (Includes Carrier & Contact Bolt)
Size Part No. A B C D E F G H J K
Small CLR-0354-000-SCA 4.8 1.18 1.24 1.73 2.36 1.77 M10 .16-2.5 2.09 .57
Medium CLR-0354-002-SCA 7.28 1.77 1.85 2.3 3.27 2.95 M16 .35-3.13 3.43 .88
Large CLR-0354-041-SCA 8 2.13 2.22 3.23 3.62 3.23 M16 .35-3.75 3.74 1.1
Extra Large CLR-0354-004-SCA 8.78 2.32 2.42 3.86 3.94 3.54 M20 .47-4.13 4.33 1.3

A
Carrier Only
B C Size Part No. A B C D E F G Dia. H
H Small CLR-3542-093-SCA 1.81 1.02 1.26 0.63 0.33 0.57 .3150 0.63
F Medium CLR-3542-094-SCA 2.32 1.26 1.57 0.91 0.39 0.83 .3937 0.87
E Large CLR-3542-132-SCA 3.23 1.75 2.28 1.1 0.43 1.1 .4724 1.34
D
Extra Large CLR-3542-096-SCA 3.54 2.2 2.68 1.34 0.51 1.3 .5512 1.42
G

Untapped Half Arm
Size Part No. A B C D F
Small CLR-3921-016-SCA 2.95 .63 1.26 .63 .63
Medium CLR-3921-017-SCA 4.53 0.87 1.89 0.91 0.98
Large CLR-3921-021-SCA 5.51 1.1 2.36 1.1 1.18
Extra Large CLR-3921-018-SCA 7.01 1.57 3.07 1.34 1.57

Tapped Half Arm (Includes Contact Bolt)
Size Part No. A B C D E F G H
Small CLR-0354-001-SCA 2.95 0.63 1.26 0.63 1.97 0.63 M10 .24-2.52
Medium CLR-0354-003-SCA 4.53 0.87 1.89 0.91 2.95 0.98 M16 .36-3.11
Large CLR-0354-042-SCA 5.51 1.1 2.36 1.1 3.74 1.18 M16 .36-3.11
14
Extra Large CLR-0354-005-SCA 7.01 1.57 3.07 1.34 4.72 1.57 M20 .48-3.86
