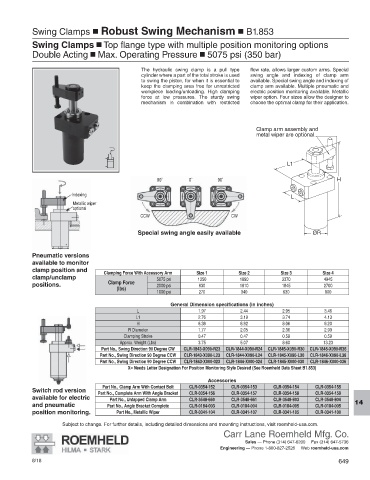

Page 651 - CarrLaneCatalog_2019ed-c.pdf

Swing Clamps Robust Swing Mechanism B1.853
J
J
Swing Clamps Top flange type with multiple position monitoring options
J
Double Acting Max. Operating Pressure 5075 psi (350 bar)
J
J
The hydraulic swing clamp is a pull type flow rate, allows larger custom arms. Special
cylinder where a part of the total stroke is used swing angle and indexing of clamp arm
to swing the piston, for when it is essential to available. Special swing angle and indexing of
keep the clamping area free for unrestricted clamp arm available. Multiple pneumatic and
workpiece loading/unloading. High clamping electric position monitoring available. Metallic
force at low pressures. The sturdy swing wiper option. Four sizes allow the designer to
mechanism in combination with restricted choose the optimal clamp for their application.

90˚ 0˚ 90˚

Indexing
Metallic wiper
optional
CCW CW

Special swing angle easily available

Pneumatic versions
available to monitor
clamp position and
Clamping Force With Accessory Arm Size 1 Size 2 Size 3 Size 4
clamp/unclamp 5075 psi 1350 1890 3370 4945
positions. Clamp Force 2000 psi 630 1010 1845 2700
(lbs)
1000 psi 270 340 630 900
General Dimension specifications (in inches)
L 1.97 2.44 2.95 3.46
L1 2.76 3.19 3.74 4.13
H 6.39 6.92 8.06 9.20
R Diameter 1.77 2.05 2.36 2.99
Clamping Stroke 0.47 0.47 0.59 0.59
Approx. Weight (Lbs) 3.75 5.07 8.60 13.23
Part No., Swing Direction 90 Degree CW CLR-1843-X090-R23 CLR-1844-X090-R24 CLR-1845-X090-R30 CLR-1846-X090-R36
Part No., Swing Direction 90 Degree CCW CLR-1843-X090-L23 CLR-1844-X090-L24 CLR-1845-X090-L30 CLR-1846-X090-L36
Part No., Swing Direction 90 Degree CCW CLR-1843-X000-023 CLR-1844-X000-024 CLR-1845-X000-030 CLR-1846-X000-036
X= Needs Letter Designation For Position Monitoring Style Desired (See Roemheld Data Sheet B1.853)

Accessories
Part No., Clamp Arm With Contact Bolt CLR-0354-152 CLR-0354-153 CLR-0354-154 CLR-0354-155
Switch rod version
Part No., Complete Arm With Angle Bracket CLR-0354-156 CLR-0354-157 CLR-0354-158 CLR-0354-159
available for electric Part No., Untapped Clamp Arm CLR-3548-660 CLR-3548-661 CLR-3548-803 CLR-3548-804
and pneumatic Part No., Angle Bracket Complete CLR-0184-003 CLR-0184-004 CLR-0184-005 CLR-0184-005 14
position monitoring. Part No., Metallic Wiper CLR-0341-104 CLR-0341-107 CLR-0341-105 CLR-0341-100

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
