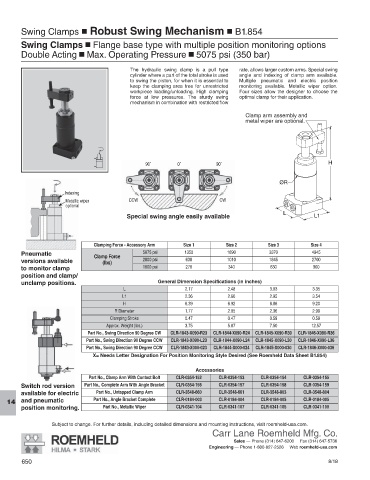

Page 652 - CarrLaneCatalog_2019ed-c.pdf

Swing Clamps Robust Swing Mechanism B1.854
J
J
Swing Clamps Flange base type with multiple position monitoring options
J
Double Acting Max. Operating Pressure 5075 psi (350 bar)
J
J
The hydraulic swing clamp is a pull type rate, allows larger custom arms. Special swing
cylinder where a part of the total stroke is used angle and indexing of clamp arm available.
to swing the piston, for when it is essential to Multiple pneumatic and electric position
keep the clamping area free for unrestricted monitoring available. Metallic wiper option.
workpiece loading/unloading. High clamping Four sizes allow the designer to choose the
force at low pressures. The sturdy swing optimal clamp for their application.
mechanism in combination with restricted flow

90˚ 0˚ 90˚

Indexing
Metallic wiper CCW CW
optional
Special swing angle easily available

Clamping Force - Accessory Arm Size 1 Size 2 Size 3 Size 4
Pneumatic 5075 psi 1350 1890 3370 4945
Clamp Force
versions available (lbs) 2000 psi 630 1010 1845 2700
to monitor clamp 1000 psi 270 340 630 900
position and clamp/
unclamp positions. General Dimension Specifications (in inches)
L 2.17 2.48 3.03 3.35
L1 2.36 2.60 2.95 3.54
H 6.39 6.92 8.06 9.20
R Diameter 1.77 2.05 2.36 2.99
Clamping Stroke 0.47 0.47 0.59 0.59
Approx. Weight (lbs.) 3.75 5.07 7.50 12.57
Part No., Swing Direction 90 Degree CW CLR-1843-X090-R23 CLR-1844-X090-R24 CLR-1845-X090-R30 CLR-1846-X090-R36
Part No., Swing Direction 90 Degree CCW CLR-1843-X090-L23 CLR-1844-X090-L24 CLR-1845-X090-L30 CLR-1846-X090-L36
Part No., Swing Direction 90 Degree CCW CLR-1843-X000-023 CLR-1844-X000-024 CLR-1845-X000-030 CLR-1846-X000-036
X= Needs Letter Designation For Position Monitoring Style Desired (See Roemheld Data Sheet B1.854)

Accessories
Part No., Clamp Arm With Contact Bolt CLR-0354-152 CLR-0354-153 CLR-0354-154 CLR-0354-155
Switch rod version Part No., Complete Arm With Angle Bracket CLR-0354-156 CLR-0354-157 CLR-0354-158 CLR-0354-159
available for electric Part No., Untapped Clamp Arm CLR-3548-660 CLR-3548-661 CLR-3548-803 CLR-3548-804
and pneumatic Part No., Angle Bracket Complete CLR-0184-003 CLR-0184-004 CLR-0184-005 CLR-0184-005
14
position monitoring. Part No., Metallic Wiper CLR-0341-104 CLR-0341-107 CLR-0341-105 CLR-0341-100

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
