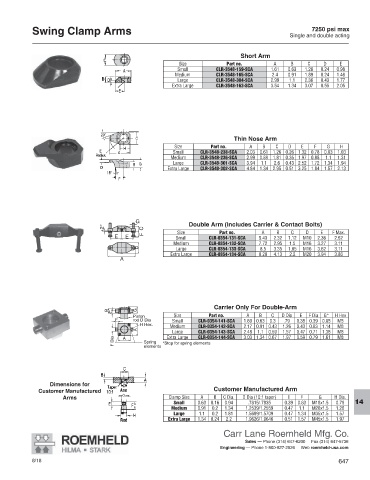

Swing Clamp Arms 7250 psi max
Single and double acting

Short Arm
Size Part no. A B C D E
Small CLR-3548-159-SCA 1.61 0.63 1.26 0.24 0.98
Medium CLR-3548-165-SCA 2.4 0.91 1.89 0.24 1.46
Large CLR-3548-304-SCA 2.99 1.1 2.36 0.43 1.77
Extra Large CLR-3548-163-SCA 3.54 1.34 3.07 0.55 2.05

Thin Nose Arm
Size Part no. A B C D E F G H
Small CLR-3548-238-SCA 2.03 0.61 1.26 0.26 1.32 0.78 0.83 1.03
Medium CLR-3548-236-SCA 2.99 0.89 1.81 0.35 1.97 0.88 1.1 1.31
Large CLR-3548-301-SCA 3.94 1.1 2.6 0.43 2.52 1.72 1.34 1.94
Extra Large CLR-3548-302-SCA 4.84 1.34 2.95 0.51 3.25 1.84 1.57 2.13

G
±2° C Size Double Arm (Includes Carrier & Contact Bolts) E F Max.
B
C
D
Part no.
A
E E F Small CLR-0354-131-SCA 5.43 2.32 1.12 M10 2.36 2.52
Medium CLR-0354-132-SCA 7.72 2.95 1.5 M16 3.27 3.11
b Large CLR-0354-133-SCA 8.5 3.35 1.85 M16 3.62 3.11
Extra Large CLR-0354-134-SCA 9.29 4.13 2.2 M20 3.94 3.86
A

Carrier Only For Double-Arm
B G
C
Piston Size Part no. A B C D Dia E F Dia G* H Hex
E rod D Dia Small CLR-0354-141-SCA 1.69 0.63 0.3 .79 0.35 0.39 0.85 M5
H Hex. Medium CLR-0354-142-SCA 2.17 0.91 0.43 1.26 0.43 0.63 1.14 M8
A
Large CLR-0354-143-SCA 2.48 1.1 0.59 1.57 0.47 0.71 1.38 M8
CLR-0354-144-SCA
Extra Large
F Dia A Spring *Stop for spring elements 3.03 1.34 0.67 1.97 0.59 0.79 1.61 M8
elements

Dimensions for
Customer Manufactured Customer Manufactured Arm
Arms Clamp Size A B C Dia. D Dia (10:1 taper) E F G H Dia.
Small 0.63 0.16 0.94 .7815/.7835 0.39 0.83 M18x1.5 0.79 14
Medium 0.91 0.2 1.34 1.2539/1.2559 0.47 1.1 M28x1.5 1.26
Large 1.1 0.2 1.81 1.5689/1.5709 0.47 1.34 M35x1.5 1.57
Extra Large 1.34 0.24 2.2 1.9626/1.9646 0.51 1.57 M45x1.5 1.97
