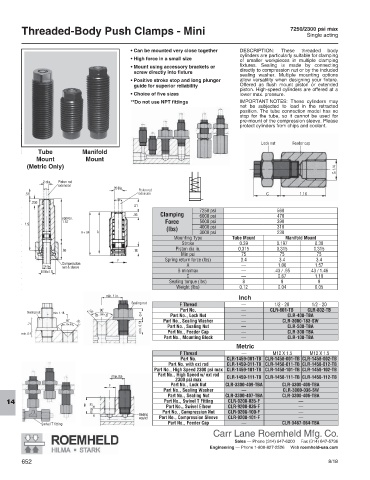

Page 654 - CarrLaneCatalog_2019ed-c.pdf

Threaded-Body Push Clamps - Mini 7250/2300 psi max
Single acting

• Can be mounted very close together DESCRIPTION: These threaded body
cylinders are particularly suitable for clamping
• High force in a small size of smaller workpieces in multiple clamping
• Mount using accessory brackets or fixtures. Sealing is made by connecting
screw directly into fixture directly to compression nut or by the included
sealing washer. Multiple mounting options
• Positive stroke stop and long plunger allow versatility when designing your fixture.
guide for superior reliability Offered as flush mount piston or extended
piston. High-speed cylinders are offered at a
• Choice of five sizes lower max. pressure.
**Do not use NPT fittings IMPORTANT NOTES: These cylinders may
not be subjected to load in the retracted
position. The tube connection model has no
stop for the tube, so it cannot be used for
pre-mount of the compression sleeve. Please
protect cylinders from chips and coolant.

Lock nut Feeder cap
Tube Manifold
Mount Mount
(Metric Only)
G 1/4
.2 dia. Piston rod
extension
.20 Dia.
Piston rod
.51 extension C 1.10
.236
.51
7250 psi 560
.16 Clamping 6000 psi 470
approx.
1.57 Force 5000 psi 390
1.9
(lbs) 4000 psi 310
A + .04 A 3000 psi 230
Mounting Type Tube Mount Manifold Mount
Stroke 0.39 0.197 0.39
.65 .16 Piston dia in. 0.315 0.315 0.315
Min psi 75 75 75
F Spring return force (lbs) 3.4 3.4 3.4
Compression
.315 Dia. nut & sleeve A — 1.06 1.57
M16x1.5 B min/max — .43 / .95 .43 / 1.46
C — 0.67 1.18
Seating torque (lbs) 8 8 8
Weight (lbs) 0.12 0.04 0.05
min. 1 in.
Inch
Sealing nut F Thread — 1/2 - 20 1/2 - 20
90˚ Part No. — CLR-801-TB CLR-802-TB
Sealing nut min. 1.18 125
Dia. .606+.16 0.4 Part No., Lock Nut — CLR-408-TBA
90˚ 125 Part No., Sealing Washer — CLR-3000-183-SW
min. 0.51 Part No., Sealing Nut — CLR-508-TBA
.71 Dia. .76+.015
min. 0.4 Part No., Feeder Cap — CLR-308-TBA
Part No., Mounting Block — CLR-108-TBA
Metric
F Thread — M12 X 1.5 M12 X 1.5
Part No. CLR-1459-001-TB CLR-1458-001-TB CLR-1458-002-TB
Part No. with ext rod CLR-1459-011-TB CLR-1458-011-TB CLR-1458-012-TB
Part No., High Speed 2300 psi max CLR-1459-101-TB CLR-1458-101-TB CLR-1458-102-TB
max. 0.6 Part No., High Speed w/ ext rod CLR-1459-111-TB CLR-1458-111-TB CLR-1458-112-TB
2300 psi max
F Part No., Lock Nut CLR-3300-409-TBA CLR-3300-408-TBA
Part No., Sealing Washer — CLR-3000-036-SW
Part No., Sealing Nut CLR-3300-407-TBA CLR-3300-406-TBA
Part No., Swivel T Fitting CLR-9208-035-F —
max. .21
B Part No., Swivel Elbow CLR-9208-036-F —
14
Sealing Part No., Compression Nut CLR-9208-100-F —
washer Part No., Compression Sleeve CLR-9208-101-F —
Swivel T fitting Part No., Feeder Cap — CLR-3467-064-TBA
Carr Lane Roemheld Mfg. Co.
Sales — Phone (314) 647-6200 Fax (314) 647-5736
Engineering — Phone 1-800-827-2526 Web roemheld-usa.com
652 8/18
