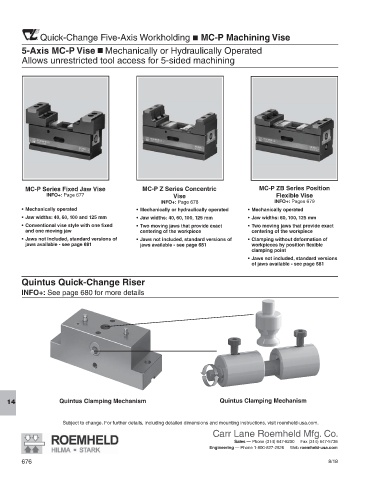

Quick-Change Five-Axis Workholding J MC-P Machining Vise

5-Axis MC-P Vise Mechanically or Hydraulically Operated
J
Allows unrestricted tool access for 5-sided machining

MC-P Series Fixed Jaw Vise MC-P Z Series Concentric MC-P ZB Series Position
INFO+: Page 677 Vise Flexible Vise
INFO+: Page 678 INFO+: Pages 679
• Mechanically operated • Mechanically or hydraulically operated • Mechanically operated
• Jaw widths: 40, 60, 100 and 125 mm • Jaw widths: 40, 60, 100, 125 mm • Jaw widths: 60, 100, 125 mm
• Conventional vise style with one fixed • Two moving jaws that provide exact • Two moving jaws that provide exact
and one moving jaw centering of the workpiece centering of the workpiece
• Jaws not included, standard versions of • Jaws not included, standard versions of • Clamping without deformation of
jaws available - see page 681 jaws available - see page 681 workpieces by position flexible
clamping point
• Jaws not included, standard versions
of jaws available - see page 681

Quintus Quick-Change Riser

INFO+: See page 680 for more details

Quintus Clamping Mechanism Quintus Clamping Mechanism
14

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
