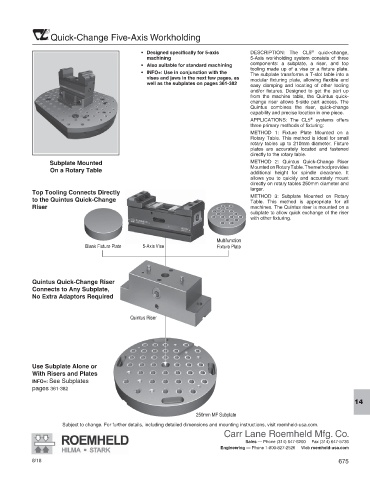

Quick-Change Five-Axis Workholding

®
• Designed specifically for 5-axis DESCRIPTION: The CL5 quick-change,
machining 5-Axis workholding system consists of three
• Also suitable for standard machining components: a subplate, a riser, and top
tooling made up of a vise or a fixture plate.
• INFO+: Use in conjunction with the The subplate transforms a T-slot table into a
vises and jaws in the next few pages, as modular fixturing plate, allowing flexible and
well as the subplates on pages 361-382
easy clamping and locating of other tooling
and/or fixtures. Designed to get the part up
from the machine table, the Quintus quick-
change riser allows 5-side part access. The
Quintus combines the riser, quick-change
capability and precise location in one piece.
®
APPLICATIONS: The CL5 systems offers
three primary methods of fixturing:
METHOD 1: Fixture Plate Mounted on a
Rotary Table. This method is ideal for small
rotary tables up to 210mm diameter. Fixture
plates are accurately located and fastened
directly to the rotary table.
Subplate Mounted METHOD 2: Quintus Quick-Change Riser
Mounted on Rotary Table. The method provides
On a Rotary Table additional height for spindle clearance. It
allows you to quickly and accurately mount
directly on rotary tables 250mm diameter and
larger.
Top Tooling Connects Directly
METHOD 3: Subplate Mounted on Rotary
to the Quintus Quick-Change Table. This method is appropriate for all
Riser machines. The Quintus riser is mounted on a
subplate to allow quick exchange of the riser
with other fixturing.

Multifunction
Blank Fixture Plate 5-Axis Vise Fixture Plate

Quintus Quick-Change Riser
Connects to Any Subplate,
No Extra Adaptors Required

Quintus Riser

Use Subplate Alone or
With Risers and Plates
INFO+: See Subplates
pages 361-382

14
250mm MF Subplate
Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
